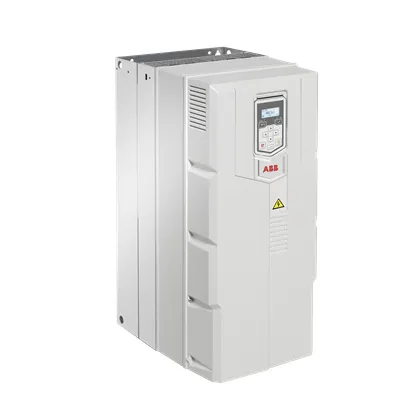

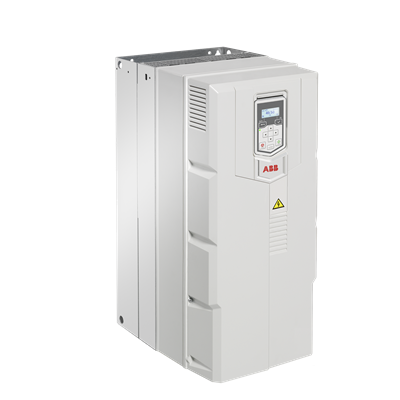

ABB 3ABD00059207-D Frequency Converter - IP20 Open Type
Part Number: 3ABD00059207-D
Quick Summary
ACS530-01-246A-4+N7562+P973 frequency converter delivers precise, efficient drive control for 132 kW motors in demanding industrial applications. Users often struggle with downtime, motor wear, and control mismatch when upgrading to variable-speed solutions. This ABB drive provides robust open-type IP20 protection for wall-mounted installations, with 380-480 V three-phase input and IE2 efficiency to support sustainable uptime. By integrating with existing control systems, it enables smoother startups, energy savings, and reduced total cost of ownership across production lines.
Product Information
Extended Description
3ABD00059207-D ABB: ACS530-01-246A-4+N7562+P973 PN: 132kW, IN: 246A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-246A-4+N7562+P973 PN: 132kW, IN: 246A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
62.8 kg
Product Net Depth / Length
393 mm
Product Net Height
680 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1160 mm
Package Level 1 Height
650 mm
Package Level 1 Width
490 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R8
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
246 A
Output Current, Light-Overload Use (ILD)
234 A
Output Power, Normal Use (Pn)
132 kW
Output Power, Light-Overload Use (PLD)
132 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The 132 kW output at 380-480 V three-phase input enables high-torque, smooth acceleration for heavy-duty conveyors and pumps, reducing peak current spikes and mechanical wear. This translates to lower maintenance costs and longer motor life in continuous manufacturing environments. Application: material handling and process lines requiring reliable speed control with minimal downtime. Feature → Business Impact → Application: IE2 efficiency improves energy performance across duty cycles, delivering measurable energy savings and reduced operating costs. Application: general purpose drives in fans, pumps, and process equipment where efficiency targets matter. Feature → Business Impact → Application: IP20 protection with Open Type enclosure supports flexible wall mounting and easy service access, enabling faster installation and simplified maintenance in tight plant spaces. Application: retrofit projects and new builds in automotive, plastics, and food & beverage sectors. Feature → Business Impact → Application: stock availability (WMS locations) and short lead times (14 days) minimize project delays and capital tied up in inventory. Application: capital projects and maintenance planning requiring predictable delivery. Feature → Business Impact → Application: 3-phase, wall-mounted frequency converter compatibility with ABB control ecosystems ensures streamlined integration, reducing engineering time and risk. Application: OEM equipment, packaging lines, and automated warehouses that rely on modular drive architectures.
Get a Quick Quote for a ABB 3ABD00059207-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059207-D?
Enquire Now
FAQs
Yes. The ACS530-01-246A-4+N7562+P973 is designed for 380-480 V three-phase input and is configured for wall-mounted use with an Open Type enclosure. This combination supports straightforward integration into existing plant electrical rooms while preserving motor performance and control precision.
The drive delivers 132 kW of output power with an output current of 246 A in normal use and 234 A under light-overload conditions. These ratings ensure reliable performance for large motors in conveyors, pumps, and similar heavy-duty applications.
Best suited for 3-phase motors in manufacturing and process environments, including conveyors, pumps, fans, and machine tools. The 47.5-63 Hz operating range supports flexible speed control for varying load profiles, improving process stability and energy efficiency.
It features IP20 protection and an Open Type enclosure, accommodating wall-mounted installations in clean, indoor spaces. The unit also carries an IE2 efficiency rating, which aligns with energy-performance regulations and reduces operating costs over the motor’s life.
Lead time is 14 days, with stock available at multiple warehouses (WMSACNURMQ | CSB | CSC | WMSACNGZH1). This distribution enables faster procurement, shorter project timelines, and less disruption when scaling power and motion solutions across facilities.
