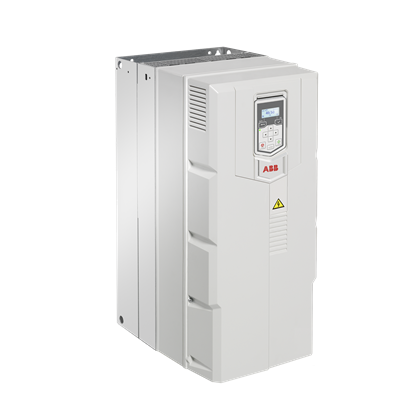

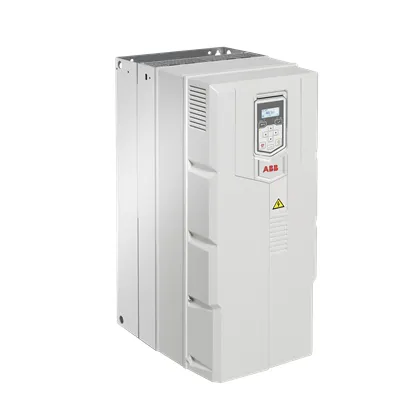

ABB ACS530-01-293A-4+N7562+P973 Frequency Converter - IE2
Part Number: 3ABD00059208-D
Quick Summary
ACS530-01-293A-4+N7562+P973 Frequency Converter controls 3-phase motors in high-power drive applications up to 160 kW. This drive is designed to reduce energy use and motor wear while delivering precise speed control in demanding manufacturing environments. Engineers often struggle with mismatched drives, downtime, and complex commissioning; this ABB unit addresses those pain points with a robust input range, compact footprint, and reliable protection. With IP20 protection and an open-type enclosure, it suits indoor, wall-mounted installations in controlled spaces. Built for ABB ecosystem compatibility, it supports easy procurement, consistent performance, and streamlined maintenance, delivering tangible business value through improved uptime and lower operating costs.
Product Information
Extended Description
3ABD00059208-D ABB: ACS530-01-293A-4+N7562+P973 PN: 160kW, IN: 293A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-293A-4+N7562+P973 PN: 160kW, IN: 293A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
62.8 kg
Product Net Depth / Length
393 mm
Product Net Height
680 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1160 mm
Package Level 1 Height
650 mm
Package Level 1 Width
490 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R8
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
293 A
Output Current, Light-Overload Use (ILD)
278 A
Output Power, Normal Use (Pn)
160 kW
Output Power, Light-Overload Use (PLD)
160 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380-480 V. Business Impact: Enables seamless compatibility with standard industrial power systems across regions, reducing the need for custom transformers. Application: Ideal for manufacturing lines and pumping stations where supply voltage varies within a broad range. Feature: 160 kW PN with 293 A IN. Business Impact: Delivers strong torque and rapid response for heavy loads, improving process stability and throughput. Application: Conveyors, mixers, and HVAC fans in production plants. Feature: IE2 efficiency. Business Impact: Taxonomy-aligned energy savings and reduced lifecycle costs, supporting sustainability targets. Application: Continuous-duty motors in automotive, packaging, and food & beverage lines. Feature: IP20 Open Type enclosure and wall mounting. Business Impact: Simplified installation in clean, indoor environments with easy access for maintenance. Application: Control rooms and machine bays with clear safety separation. Feature: 47.5–63 Hz frequency range. Business Impact: Flexible speed control for variable-load processes, enabling precise process optimization. Application: Pumps and fans requiring smooth start/stop cycles. Feature: Stocked at multiple warehouses (WMSACNURMQ, CSB, CSC, WMSACNGZH1). Business Impact: Faster fulfillment, reduced deadstock risk, and shorter lead times. Application: Global procurement for OEMs and system integrators. Feature: 14-day lead time (CN origin). Business Impact: Improves supply chain predictability and project scheduling. Application: Capital projects and retrofit campaigns with defined timelines. Industry context: This drive aligns with open-architecture controls and industry-standard IEC practices, enabling easier integration with existing ABB and third-party components, minimizing compatibility concerns and post-install adjustments.
Get a Quick Quote for a ABB 3ABD00059208-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059208-D?
Enquire Now
FAQs
The drive accepts 3-phase 380-480 V supplies and operates at 47.5–63 Hz with an IP20 open-type enclosure. It is designed for wall-mount installations in indoor control rooms and machine bays, compatible with standard industrial wiring practices and ABB control architectures.
Expect 160 kW output power (PN), 293 A nominal output current (IN), and IE2 efficiency. The frequency range allows precise speed control (47.5–63 Hz), and the open-type enclosure supports straightforward cooling and service access during operation.
Yes. With 3-phase input and 160 kW capability, it handles medium-to-high load applications such as hydraulic pumps and belt conveyors. Wall-mounted, IP20 protection, and 380-480 V compatibility simplify integration into standard production lines.
The drive features IP20 protection and an open-type enclosure suitable for controlled indoor environments. While CE and SIL classifications aren’t specified here, the unit is designed for typical industrial practice and robust reliability within ABB ecosystems.
Energy efficiency (IE2) reduces operating costs over time, and the unit’s robust protection and modular design simplify maintenance. Stock availability at multiple warehouses accelerates procurement, supporting faster project ROI and reduced downtime during upgrades or retrofits.
