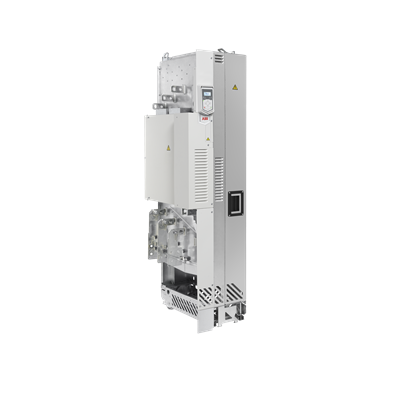

ABB ACS530-04-650A-4+J400 Drive Module - IP00 Enclosure
Part Number: 3ABD00059221-D
Quick Summary
ABB ACS530-04 drive module provides precise motor control for cabinet installations in manufacturing and process lines. It addresses the common pain points of lengthy commissioning, complex wiring, and maintenance-heavy setups by offering built-in features and smart assistants that simplify setup. The drive ships with an IP00 enclosure as standard for cabinet installations, with an IP20 option available for more demanding environments, aligning with typical industrial automation safety and protection needs. This combination supports efficient installations, predictable performance, and easy integration within ABB drives ecosystems, delivering tangible business value such as reduced downtime, faster time-to-production, and lower total cost of ownership in industrial settings.
Product Information
Extended Description
3ABD00059221-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature → Business Impact → Application: Built-in features and a straightforward settings menu with assistants reduce commissioning time and hardware complexity, enabling faster site startup and easier ongoing maintenance for cabinet-mounted drives used in automated manufacturing lines. This translates to shorter project cycles, lower engineering effort, and consistent performance across multiple machines. Feature → Business Impact → Application: Rugged, robust design supports operation in varied factory environments, boosting reliability and decreasing unplanned downtime in process automation applications such as conveyors, pumps, and fans. Feature → Business Impact → Application: IP00 enclosure standard with an IP20 option provides installation flexibility for cabinet-based systems, simplifying integration with existing panels and reducing enclosure-related sourcing complexity in industrial facilities. Feature → Business Impact → Application: Comprehensive control capabilities allow plant-wide process management and improved energy efficiency, delivering measurable reductions in energy consumption and maintenance costs in production lines. Feature → Business Impact → Application: Compact footprint and integration with ABB drive families streamline procurement and spare-part strategies, lowering total cost of ownership and simplifying technician training for industrial engineers and procurement teams.
Get a Quick Quote for a ABB 3ABD00059221-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059221-D?
Enquire Now
FAQs
The ACS530-04-650A-4+J400 is designed for cabinet-mounted use with an IP00 enclosure standard, and an IP20 option is available for harsher environments. When installing, ensure proper panel space, compliant wiring to the 650 A input, and compatible connectors with ABB drive families. The built-in setup assistants help streamline commissioning and reduce field wiring complexity, contributing to faster startup times and easier maintenance.
This drive module delivers precise motor control with a 355 kW power rating and 650 A input current, enabling smooth speed and torque management for conveyor belts, pumps, and fans. Built-in configuration assists minimize tuning time, improving startup accuracy and energy efficiency. The robust design supports reliable operation across typical industrial automation applications.
Yes. The ACS530-04-650A-4+J400 is well-suited for cabinet-mounted motor control in conveyor and pump applications, offering straightforward setup, reliable performance, and protection suitable for manufacturing and process environments. Its integrated features reduce wiring and external hardware, while the IP00 enclosure (IP20 option available) supports installation within standard control panels.
The drive module uses an IP00 enclosure as standard, suitable for cabinet installation, with an IP20 option for environments requiring higher protection. This aligns with common industry practices for panel-mounted controls and supports safe, protected operation in typical automation plants. Specific regional certifications should be confirmed according to your local regulations and ABB’s documentation.
The ACS530-04-650A-4+J400 reduces commissioning time through built-in features and a guided setup, lowers hardware counts by integrating essential control functions, and minimizes downtime with robust reliability. In practice, these factors translate to faster time-to-production, lower maintenance costs, and a lower total cost of ownership for automated lines in manufacturing and process industries.
