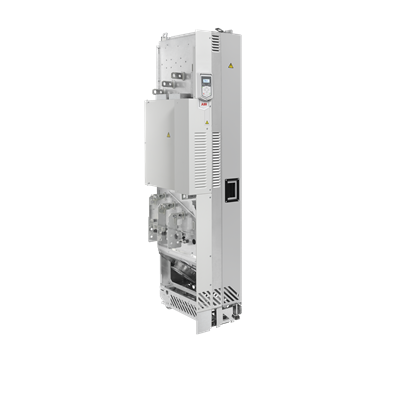

ABB ACS530-04-725A-4+J400 Drive - IP00/IP20 Enclosure
Part Number: 3ABD00059222-D
Quick Summary
The ACS530-04-725A-4+J400 drive is a compact motor control solution delivering precise control for demanding cabinet installations in pumps, fans, and conveyors. Engineers often face lengthy commissioning and inconsistent settings; built-in assistants and a straightforward settings menu dramatically reduce startup time and operator error. This drive family emphasizes IP-rated reliability and rugged design, with IP00 enclosure standard for cabinet installations and IP20 option for tougher environments. By combining robust control with easy integration, it enables faster project delivery while reducing hardware overhead and total cost of ownership. Use cases include conveyor lines, pump systems, and HVAC assemblies, all supported by scalable automation and energy-efficient operation.
Product Information
Extended Description
3ABD00059222-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Built-in essential features simplify drive selection and minimize hardware. Business impact: Faster project timelines and lower capital expenditure. Application: Cabinet installations in packaging lines and manufacturing cells. The integrated controls reduce wiring complexity and spare part counts, improving reliability and downtime costs. Feature: Quick setup and commissioning assistants. Business impact: Shorter start-up cycles and fewer commissioning errors. Application: New line startups and retrofits where time to productivity matters. Feature: IP00 standard enclosure with IP20 option. Business impact: Flexible installation across controlled cabinets or harsher environments without changing hardware. Application: Industrial automation panels in conveyors, fans, and process lines. Feature: Rugged, robust design for diverse environments. Business impact: Higher mean time between failures and extended asset lifetime. Application: Plants with temperature fluctuations, dust, and vibration. Feature: Clear compatibility with cabinet systems and ABB drive family. Business impact: Streamlined maintenance and spare-part planning. Application: Integration into existing PLC architectures and automation stacks. Industry context: Energy efficiency targets and predictable performance support long-term cost containment.
Get a Quick Quote for a ABB 3ABD00059222-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059222-D?
Enquire Now
FAQs
Plan for a cabinet installation with the IP00 enclosure standard and consider upgrading to the IP20 option if the environment increases dust or moisture exposure. Use the built-in setup assistants to guide parameter selection and confirm motor rating compatibility (400 kW, 725 A). Ensure proper AC drive wiring, shielded cables, and motor protection coordination for reliable operation.
The drive is rated for 400 kW output with a 725 A input/current capability. It is designed for cabinet installations with IP00 as standard and IP20 as an optional enclosure. The ACS530 family emphasizes built-in configuration tools, straightforward parameterization, and reliable control of industrial motors in conveyors, pumps, and fans.
Yes, it is suitable for conveyors and pumps, with the IP00 standard enclosure optimized for cabinet mounting and an IP20 option to handle tougher environments. The drive’s rugged design and integrated setup tools reduce commissioning risk and improve uptime, while its current and power ratings match typical medium to high-power motor applications in automated lines.
The ACS530-04-725A-4+J400 supports IP ratings with IP00 as standard and IP20 as an option for enhanced protection. It is CE-compliant as part of ABB’s standard product portfolio, aligning with common industrial safety and performance requirements for electrical drives used in automation and motion control.
ROI benefits stem from reduced hardware footprint, faster commissioning, and lower maintenance due to built-in diagnostics and robust design. The cabinet-ready IP00/IP20 options simplify installation, minimize spare parts, and extend asset life by delivering stable motor control, energy-efficient operation, and easier integration with existing plant automation and PLCs.
