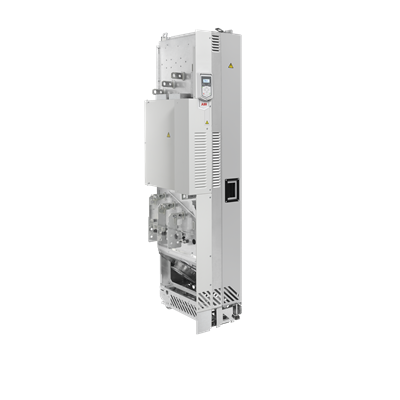

ABB 3ABD00059223-D ACS530-04 Drive - IP00/IP20
Part Number: 3ABD00059223-D
Quick Summary
ACS530-04 drive from ABB provides precise motor control for industrial conveyors and pumps. Engineers face lengthy setup times, compatibility headaches, and rising maintenance costs; this drive simplifies commissioning with an intuitive settings menu and built-in assistants. It features rugged construction and standard IP00 enclosure with IP20 options, aligning with common industrial protections. The ACS530-04 supports comprehensive plant-wide control, enabling faster tuning and easier fault diagnostics. By consolidating essential drive functionality in a single unit, it reduces spare parts diversity, lowers lifecycle costs, and improves uptime across motor-driven processes. For maintenance teams and procurement professionals, this translates to a more predictable, cost-efficient automation investment.
Product Information
Extended Description
3ABD00059223-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature is built-in essential control capabilities → Business impact is simplified drive selection and reduced external hardware → Application is cabinet installations in manufacturing cells. The drive includes a straightforward settings menu and assistants → Business impact is faster commissioning, fewer configuration errors, and lower training requirements → Application across pumps, fans, and conveyors. Compatibility and installation advantages include IP00 cabinet enclosure as standard with IP20 option → Business impact is flexible mounting in control panels and easier retrofits → Application in control rooms or machine cabinets. Robust design supports harsh industrial environments → Business impact is longer service life and reduced maintenance interruptions → Application in packagers, material handling, and process lines. The 450 kW rating with 820 A input current → Business impact is high-power motor control with efficient energy use → Application in heavy-duty conveyors and process pumps. All essential features built-in eliminates the need for additional hardware → Business impact is lower upfront capital and simplified spare parts planning → Application across new installs and modernization projects. Industry insight shows that integrated drives reduce total cost of ownership by enabling unified diagnostics, streamlined procurement, and faster ROI in mixed-motor facilities.
Get a Quick Quote for a ABB 3ABD00059223-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059223-D?
Enquire Now
FAQs
The ACS530-04 is designed for cabinet installation with an IP00 enclosure standard and an IP20 option for higher protection. Start by mounting the drive in the panel, connect motor leads and power supply per the ABB installation guide, then use the built-in setup assistants to configure motor parameters, control modes, and safety functions. This approach minimizes external hardware and shortens commissioning time while ensuring reliable compatibility with ABB motors and PLCs.
Key specs include a 450 kW power rating (PN) and 820 A input current (IN). The drive is available in an IP00 cabinet configuration with an IP20 option, designed for robust operation in industrial environments. These specifications support high-demand applications like heavy conveyors, pumps, and fans, while maintaining precise speed and torque control.
Yes. The ACS530-04 is well-suited for pumps, conveyors, and fans, delivering smooth start-up, accurate speed control, and energy-efficient operation. Its built-in features and easy tuning assist in maintaining process stability, while the IP-rated enclosure options support installation in diverse environments, reducing commissioning time and enabling reliable long-term performance.
The drive provides IP-rated protections with IP00 standard and IP20 option, delivering rugged enclosure protection appropriate for cabinet installations. While specific certs like SIL or CE are not listed in the provided data, ABB drives typically align with common industrial standards and safety practices, and the IP ratings help ensure safe operation in controlled industrial environments.
The integrated design eliminates the need for multiple external components, reducing hardware investments and spare parts inventory. Built-in setup assistants shorten commissioning times and simplify maintenance, leading to faster fault diagnosis and less downtime. Over the lifecycle, this translates to lower total cost of ownership and a quicker return on automation investments in facilities with mixed motor loads.
