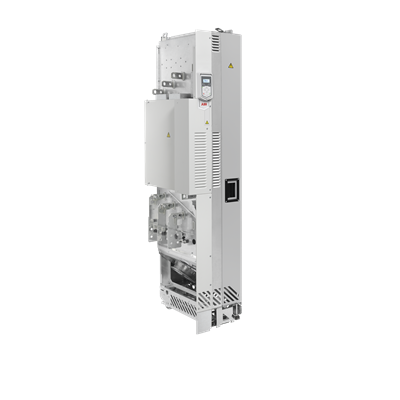

ABB 3ABD00059224-D Motors & Drives - IP00 Enclosure
Part Number: 3ABD00059224-D
Quick Summary
ACS530-04 provides built-in motor control for high-power applications in cabinet installations. This drive helps you simplify integration and reduce startup time across automation lines. CE-compliant with IP00 protection as standard and IP20 available, it offers installation flexibility while maintaining safety in factory environments. In practice, this means faster time-to-value, easier spare-part management, and predictable performance for high-demand manufacturing processes.
Product Information
Extended Description
3ABD00059224-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature → Business Impact → Application: Built-in control and compact integration reduces external hardware and BOM while enabling cleaner cabinet layouts; Application: cabinet installations in new lines or upgrades. Feature → Business Impact → Application: Intuitive settings menu and guided assistants shorten commissioning time and reduce operator errors; Application: rapid startups and shift-change trials in production. Feature → Business Impact → Application: Rugged IP00 standard and IP20 option provide dependable operation across factory environments; Application: scalable deployment from controlled cabinets to harsher zones. Feature → Business Impact → Application: Broad compatibility with PLCs/SCADA and easy fieldbus integration lowers wiring complexity; Application: automation cells and packaging lines. Feature → Business Impact → Application: Proactive diagnostics and maintenance tools improve uptime and asset longevity; Application: plant reliability programs and service planning.
Get a Quick Quote for a ABB 3ABD00059224-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059224-D?
Enquire Now
FAQs
The 3ABD00059224-D is designed for seamless integration within the ACS530-04 family, featuring built‑in motor control and a standard IP00 enclosure suitable for cabinet installations. It supports straightforward parameterization and works with ABB control architectures to minimize wiring and commissioning time, while preserving precise motor control for high‑power applications.
Key specifications include a 500 kW nominal power rating and an input current of 880 A. The model ships with IP00 as the standard enclosure and an IP20 option available for more demanding environments. The 3ABD00059224-D designation identifies a specific ABB catalog part optimized for robust motor control in cabinet installations.
Yes. With a 500 kW rating and 880 A input current, the ACS530-04-880A-4+J400 is well-suited to drive large motors in packaging lines and similar throughput-focused processes. Its built-in features simplify setup, while the IP00 enclosure provides reliable cabinet integration, contributing to higher line uptime and consistent product throughput.
The drive is CE-compliant and ships with an IP00 enclosure as standard, with an IP20 option available. This combination provides essential protection for cabinet installations and adaptable use in varying factory conditions, supporting regulatory alignment and flexible deployment across plant layouts.
Built-in diagnostics and a streamlined setup process reduce maintenance overhead and downtime. By minimizing external hardware and accelerating commissioning, the ACS530-04 lowers total cost of ownership and improves plant reliability, delivering measurable ROI through faster time-to-value and extended motor life from precise control.
