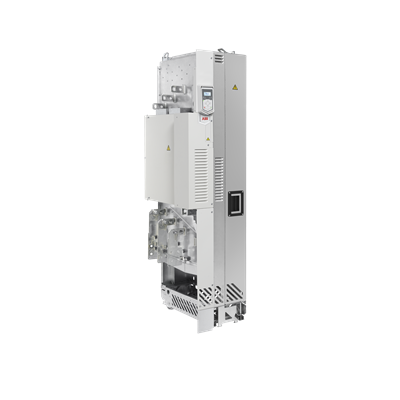

ABB ACS530-04 Motor Drive - IP00/IP20 Enclosure
Part Number: 3ABD00059226-D
Quick Summary
ACS530-04 motor drive delivers precise speed control for industrial pumps and conveyors across manufacturing lines. It addresses the common pain of lengthy setup, wiring complexity, and unpredictable startups by bundling essential features and intelligent setup assistants. The solution carries CE compliance and robust IP ratings, with IP00 enclosure standard for cabinet installations and IP20 available for more demanding environments, helping plants meet safety and regulatory requirements. This drives improved process stability and energy efficiency, while reducing spares and maintenance overhead. In addition to core motor control, it integrates smoothly with ABB's broader automation ecosystem, offering a scalable path for future upgrades and broader adoption of automated motor control solutions.
Product Information
Extended Description
3ABD00059226-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Built-in essential features simplify drive selection and minimize hardware, reducing upfront cost, integration risk, and project lead times across demanding industrial applications like conveyors, pumps, and machine tools. The ACS530-04 consolidates core motor control, protection, diagnostics, and parameterization into one compact device, ensuring reliable operation in cabinet installations where space is at a premium and downtime is costly. Fast setup and commissioning are enabled by a straightforward settings menu and guided assistants that walk you through parameterization, testing, and validation, reducing engineering hours and the risk of configuration errors. This streamlined workflow translates to quicker ramp-ups, tighter process control, and a faster return on investment for larger scale automation projects. The rugged, robust design is engineered to withstand dynamic loads, vibration, and temperature variations typical of modern factories, providing predictable performance and lower maintenance demands over the life of the equipment. Operators benefit from consistent drive behavior, easier fault diagnosis, and reduced need for frequent hardware replacements, contributing to overall plant availability and improved batch or production cycle reliability. Standard IP00 enclosure supports cabinet installation with minimal ancillary components, while an IP20 enclosure option broadens compatibility for environments where higher ingress protection is required. This dual enclosure strategy simplifies installation planning, cabinet sizing, and retrofits, enabling smoother integration with existing automation architectures and minimizing project risk. With a 250 kW rating and 505 A input, the ACS530-04 delivers substantial power density while maintaining ease of integration into ABB's drive ecosystem for scalable plant-wide control. Overall, the device supports energy efficiency, regulatory compliance, and a roadmap for future expansion of motor control capabilities across manufacturing lines.
Get a Quick Quote for a ABB 3ABD00059226-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059226-D?
Enquire Now
FAQs
ACS530-04 is designed for cabinet installations with the standard IP00 enclosure, and an IP20 option is available for more demanding environments. It integrates seamlessly with ABB’s drive ecosystem, ensuring consistent motor control across ABB components. The built-in setup tools guide parameterization, reducing wiring complexity and shortening the project timeline while maintaining safety and reliability in conveyors, pumps, and automation lines.
Key metrics include the 250 kW power rating and 505 A input, which define the maximum motor size and current handling. The drive supports precise speed control, torque management, and robust protection features to maintain stable operation under load fluctuations. For high-power lines, the combination of protection and enclosure compatibility ensures reliable performance with minimal downtime.
Yes, the ACS530-04 is CE compliant, ensuring European regulatory alignment. It ships with a standard IP00 enclosure suitable for cabinet installations, and an IP20 enclosure option is available for environments with higher ingress protection needs. These ratings support safe operation in a wide range of manufacturing settings while simplifying regulatory compliance.
Built-in features reduce the need for extra hardware, lowering capital expenditure and spare-part counts. The intuitive setup and diagnostic tools shorten commissioning and maintenance cycles, while the rugged construction minimizes downtime and service intervals. The drive’s compatibility with ABB components also streamlines stock management and technician training.
It is well suited for conveyors, pumps, and material-handling equipment in manufacturing environments. The 250 kW class enables use in larger machines, while the IP rating options accommodate cabinet-based installations and harsher spaces. Overall, ACS530-04 supports scalable motor control across automation lines and aligns with ABB’s broader motor control strategy.
