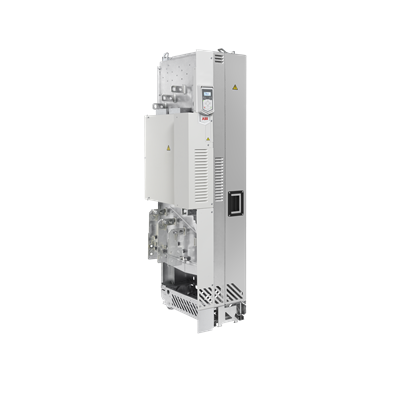

ABB ACS530-04-505A-4+P972 Drive - IP00/IP20
Part Number: 3ABD00059227-D
Quick Summary
ACS530-04 drives provide precise motor control for industrial machines in production lines. Engineers and maintenance teams often face lengthy setup, complex parameter tuning, and wiring challenges that delay commissioning and inflate project costs. The ABB ACS530-04 family ships with built-in essential features and an intuitive setup menu, offering IP00 protection for cabinet installation and IP20 options for harsher environments. This combination reduces integration risk and accelerates deployment across plant sections. By simplifying configuration and maintenance, the drive supports lean maintenance programs, improves energy efficiency, and enables scalable process control for growing manufacturing demands.
Product Information
Extended Description
3ABD00059227-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature built-in essential functions → Business impact reduces hardware requirements and simplifies installation → Application suitable for cabinet-mounted drives in production lines. The built-in feature set minimizes external module needs, cutting BOM costs and speeding up commissioning, particularly in conveyor and pump applications. Feature versatile setup assistants → Business impact accelerates commissioning time and reduces specialist labor → Application ideal for OEMs upgrading existing lines or deploying new lines with minimal downtime. Feature a rugged, robust design → Business impact lowers downtime and extends service intervals → Application in varied factory environments such as packaging, manufacturing, and process industries. Feature IP00 standard enclosure with optional IP20 → Business impact provides installation flexibility and protection for cabinet environments while controlling total system cost → Application supports both simple cabinet installs and harsher environments without extra enclosures. Feature comprehensive process control and plant-management capability → Business impact improves process stability and traceability, enabling proactive maintenance and tighter KPIs → Application across multi-line plants requiring consistent motor control and reporting.
Get a Quick Quote for a ABB 3ABD00059227-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059227-D?
Enquire Now
FAQs
The ACS530-04-505A-4+P972 is designed for cabinet installation with IP00 as standard and IP20 as an option. It supports up to 250 kW motor power at 505 A input, simplifying mounting in standard industrial enclosures. When planning a retrofit or new build, verify cabinet depth, mounting rails, and wiring routes to ensure clean integration with existing motor starters and fieldbus connections.
Key specs include a 250 kW power rating and 505 A input current (IN: 505A). The drive module ships with built-in features to minimize external hardware, and it offers IP00 standard enclosure with an IP20 option for harsher environments. These figures guide selection for high-power motor control in conveyors, pumps, and fans within automated lines.
Yes. The ACS530-04 is engineered for reliable motor control in conveyors and pumping applications, delivering smooth speed regulation and robust protection. Its built-in setup assistants streamline commissioning for conveyor lines, while the rugged design supports continuous operation in busy production settings, reducing the risk of unexpected downtime.
The drive provides IP00 protection as standard for cabinet installation and IP20 as an optional enclosure, enabling safer operation and protection of electronics in typical factory environments. While it focuses on IP ratings, these protections align with common industry standards for cabinet-mounted drives and contribute to installation reliability and compliance in plant layouts.
The built-in features and intuitive setup reduce external hardware, shortening commissioning times and lowering initial capital expenditure. With faster diagnostics, fewer components, and robust enclosure options, maintenance intervals extend and uptime improves. Across multi-line deployments, these efficiencies translate to shorter project cycles, lower lifecycle costs, and stronger process availability.
