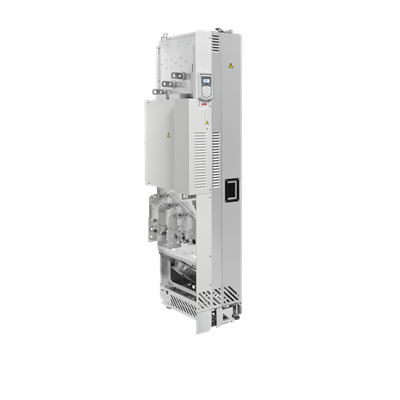

ABB ACS530-04 Drive Module - Cabinet IP00 Enclosure
Part Number: 3ABD00059242-D
Quick Summary
The ABB ACS530-04 drive module is a compact, integrated motion control solution for cabinet-based automation. Engineers often wrestle with wiring complexity, long setup times, and inconsistent commissioning; this module streamlines configuration with built-in features and guided assistants. Two protection options—IP00 standard enclosure and IP20 enclosure—help meet cabinet standards and environmental demands. Its rugged design reduces hardware needs while enabling scalable, plant-wide control across manufacturing lines, supporting efficient motor control and smoother automation workflows.
Product Information
Extended Description
3ABD00059242-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Built-in essential drive capabilities simplify selection and reduce external hardware. Benefit: lowers bill of materials, shortens project timelines, and increases system reliability for mission-critical applications. Application: cabinet-based automation and machinery enclosures where space and simplicity matter. Feature: Versatile settings menu and guided assistants enable fast setup, commissioning, use, and maintenance. Benefit: minimizes technician training, reduces downtime, and accelerates changeovers in packaging lines or conveyors. Application: rapid deployment on new lines and quick troubleshooting in production. Feature: Rugged, robust design supports diverse environments and long-term uptime. Benefit: extended service life, lower maintenance costs, and greater plant availability. Application: factory floors and control rooms subject to vibration, dust, or temperature variation. Feature: IP00 standard enclosure with IP20 option provides installation flexibility. Benefit: seamless cabinet integration and protection tailored to environment. Application: switch between cabinet-only installations and harsher environments without redesign. Feature: Comprehensive plant-control compatibility reduces hardware sprawl. Benefit: simpler integration with existing ABB drives and cohesive robot/line control. Application: multi-drive architectures and scalable automation projects.
Get a Quick Quote for a ABB 3ABD00059242-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059242-D?
Enquire Now
FAQs
Yes. The ACS530-04 is designed for cabinet installations and ships with an IP00 enclosure as standard, with an IP20 enclosure option available for more demanding environments. It integrates into standard control panels without requiring extensive external hardware, simplifying panel mounting and wiring while maintaining compliance with common cabinet practices.
The drive module emphasizes built-in essential drive features and a straightforward configuration interface, enabling fast commissioning and reliable operation. Key implications include reduced wiring, fewer external components, and a streamlined path to plant-wide control. Though exact electrical ratings aren’t listed here, the IP00/IP20 options support flexible installation across cabinet-based systems.
Best suited for cabinet-based automation in manufacturing, packaging, conveyors, and assembly lines. The combination of built-in features, quick setup, and IP-rated enclosures makes it ideal for systems that require reliable motor control with minimal hardware, scalable for growing automation initiatives and compliant with typical industrial enclosure standards.
The product offers IP-rated protection with IP00 as standard and IP20 as an available option, supporting cabinet installation and harsher environments. While CE or SIL specifics aren’t listed here, the IP ratings align with common industrial protection requirements for drives deployed in controlled manufacturing environments.
By consolidating essential drive features into a single module, it reduces hardware needs and simplifies maintenance. Faster commissioning and fewer components translate to shorter project lead times and lower maintenance costs, contributing to a faster return on investment in new lines or upgrades.
