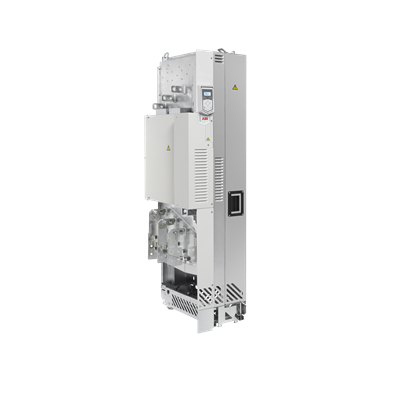

ABB ACS530-04 Drive Module - 355kW, IP00/IP20
Part Number: 3ABD00059245-D
Quick Summary
The ABB ACS530-04 drive module delivers precise motor control for medium-power applications like conveyors, pumps, and fans. That reduces engineering time by providing built-in assistants, a straightforward settings menu, and guided commissioning workflows that prevent misconfigurations. The system supports CE-compliance and IP-rated protection, with a standard IP00 cabinet enclosure and an IP20 option for increased ingress protection in harsher environments. By pairing high-performance drive capability with cabinet-ready installation and diagnostics, it improves process control, reduces energy waste, and lowers total cost of ownership across factories. Its compatibility with common ABB drive families and streamlined maintenance routines helps service teams sustain uptime with minimal disruption.
Product Information
Extended Description
3ABD00059245-D ABB: The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Built-in essential drive features simplify selection and integration. Business Impact: Reduces hardware requirements and engineering time, speeding up project timelines. Application: Cabinet installations in automation lines where space and reliability matter. Feature: Intuitive settings menu and assistant-guided commissioning. Business Impact: Cuts setup time, minimizes configuration errors, and accelerates startup tests. Application: New line startups and retrofits in manufacturing plants. Feature: IP00 standard enclosure with IP20 upgrade option. Business Impact: Flexible installation in control cabinets and scalable protection for harsher environments. Application: Factory floors with varying ingress protection needs. Feature: Rugged design for diverse environments. Business Impact: Improved reliability, reduced maintenance, and longer equipment life. Application: High-duty conveyors, pumps, and fans in continuous operation. Feature: Integrated diagnostics and plant-wide control capabilities. Business Impact: Enhanced visibility, proactive maintenance, and energy optimization. Application: Process control loops across multiple machines. Feature: Compatibility with ABB drive families. Business Impact: Seamless integration with existing automation ecosystems and reduced procurement risk. Application: Upgrades and expansions within established ABB-based systems.
Get a Quick Quote for a ABB 3ABD00059245-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059245-D?
Enquire Now
FAQs
The ACS530-04 is designed for cabinet installations with standard IP00 protection and an IP20 upgrade option. When planning, verify enclosure space, proper cable routing, and heat dissipation within the cabinet. Use the built-in setup assistants to accelerate commissioning and minimize wiring errors during installation in existing or new control cabinets.
The drive module integrates essential control features that enable precise motor current and speed regulation, delivering smoother speed profiles and better torque control. This translates to reduced mechanical wear, improved process stability, and energy savings on conveyor and pump systems, especially during start/stop cycles and variable load conditions.
Yes. The unit ships with a standard IP00 cabinet enclosure and offers an IP20 option for environments requiring higher ingress protection. Its rugged design and built-in diagnostics help maintain uptime in factory automation settings, while straightforward setup minimizes the complexity of cabinet electrical work.
The ACS530-04 is CE-compliant and features IP-rated protection suitable for cabinet installations. This combination supports safe operation and regulatory compatibility in most industrial facilities, enabling straightforward integration into standardized automation architectures without additional protective enclosures in compliant environments.
Deployment can reduce commissioning time and hardware overhead thanks to built-in features and guided setup, lowering installation costs. The robust enclosure options and diagnostics help prevent unexpected downtime, extending service intervals, and delivering a shorter payback period through improved process reliability and reduced energy waste across line operations.
