ABB 3ABD00059333-D ACQ531-04 drive - IP00/IP20
Part Number: 3ABD00059333-D
Quick Summary
ABB ACQ531-04 drive powers pump systems for water and wastewater treatment. Operators often struggle with energy waste, fluctuating flow, and integration complexity within compact plant spaces. This drive combines a robust, compact module with built-in pump application functionality and flexible enclosure options, simplifying installation in cabinet architectures. The IP00 enclosure comes as standard, with an IP20 upgrade available to meet stricter cabinet and protection requirements. By consolidating pump control and drive functionality, it reduces wiring, improves startup times, and supports consistent, compliant operation. In addition to its high-power capability, this solution helps lower operating costs through energy-efficient speed control and reliable long-term performance. It also aligns with industrial best practices for water utilities and manufacturing environments.
Product Information
Extended Description

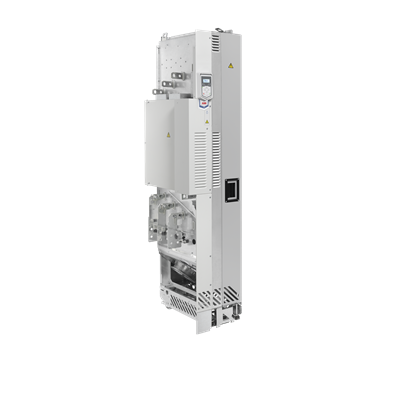

3ABD00059333-D ABB: The ACQ531-04 drives deliver pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has a built-in pump application functionality. The ACQ531-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Built-in pump application functionality reduces external controller complexity and accelerates commissioning. This directly lowers engineering time, wiring costs, and field wiring errors while delivering more predictable pump performance. In water and wastewater pumping, the integrated pump logic provides smooth start/stop, improved torque control, and robust protection for critical equipment, enabling safer and more reliable operations. High-power capability and reliability: The module is rated for up to 400 kW with IN 725 A, making it suitable for demanding pumping duties in municipal and industrial plants. This reduces the number of drives required in a system and lowers cabinet footprint while delivering consistent performance across varying loads. In practice, operators enjoy steadier flow, fewer trips, and easier capacity planning. Enclosure flexibility: Standard IP00 enclosure suits cabinet installations, and an IP20 option provides enhanced protection where harsher environments or stricter protection requirements exist. This dual-option approach simplifies retrofits and expansions, helping projects stay on schedule without changing core equipment. The enclosure strategy also supports safer maintenance and reduces accidental contact risk. Compact, robust design and installation efficiency: The drive module’s compact footprint and built-in pump features streamline cabinet layouts and reduce cabling. Engineers benefit from shorter commissioning cycles and easier serviceability, while technicians appreciate standardized mounting and accessible fault diagnostics. Energy efficiency and lifecycle benefits: Precise motor speed control and pump optimization cut energy consumption, especially at part-load conditions common in water networks. The result is lower operating costs, extended pump life, and improved reliability for critical infrastructure projects.
Get a Quick Quote for a ABB 3ABD00059333-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059333-D?
Enquire Now
FAQs
The ABB ACQ531-04 drive is a high-power module designed for pump applications and is compatible with standard cabinet installations. With a 400 kW rating and 725 A input, it integrates into water and wastewater pumping solutions and reduces external wiring. It supports straightforward commissioning and can be paired with compatible ABB drive components to streamline system expansion.
The built-in pump application functionality embeds pump-specific control logic within the drive, delivering smooth start/stop, improved torque control, and robust protection. This eliminates complex external PLC routines for many pumping scenarios, shortens project timelines, and enhances overall pump reliability in municipal and industrial water systems.
Yes. The ACQ531-04 ships with a standard IP00 enclosure suitable for cabinet installations, and an IP20 enclosure option is available for environments requiring higher protection. This flexibility simplifies retrofits, optimizes safety, and supports installation in a range of plant configurations without major hardware changes.
Key compliance aspects for this drive include IP ratings: IP00 as standard enclosure and IP20 as an upgrade option. While the data here does not specify SIL or CE certifications, the enclosure protections and rugged construction are designed to meet common industrial standards for water and wastewater applications and crowded plant environments.
Deploying the ACQ531-04 can reduce total cost of ownership by cutting engineering time, wiring, and commissioning effort thanks to the built-in pump application. Energy-efficient speed control lowers operating costs over the pump lifecycle, while integrated protection and diagnostics minimize downtime and simplify maintenance planning for water utilities and industrial pumping systems.
