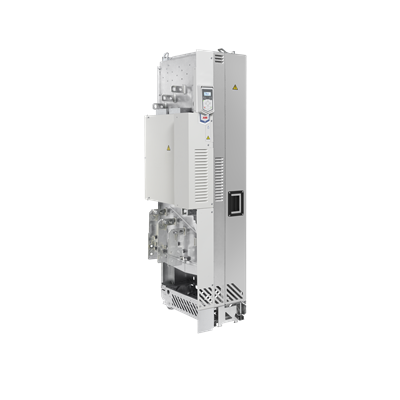

ABB 3ABD00059350-D ACQ531-04 Drive Module - IP00/IP20
Part Number: 3ABD00059350-D
Quick Summary
ACQ531-04 Drive Module delivers efficient pump control for water and wastewater applications. This compact drive module addresses the common challenge of bulky, space-hungry drives that constrain cabinet design and increase energy waste in pumping stations. The unit is CE‑compliant with IP00 standard enclosure as standard and IP20 options for cabinet installation, supporting rugged operation in harsh environments. Built for reliability, it includes built-in pump application functionality that simplifies control schemes while reducing commissioning time. For system integrators and operators, this ABB solution delivers predictable performance, easier maintenance, and lower total cost of ownership in automated water management applications.
Product Information
Extended Description
3ABD00059350-D ABB: The ACQ531-04 drives deliver pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has a built-in pump application functionality. The ACQ531-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Built-in pump application functionality. Business Impact: Simplifies control logic and wiring, reduces commissioning time, and improves system predictability. Application: Water and wastewater pumping where precise flow control is critical. Feature: Compact, robust enclosure options (IP00 standard, IP20 option) and cabinet installation. Business Impact: Frees panel space and enables flexible installation in standard control rooms or harsh environments. Application: Centralized pump stations and municipal facilities needing versatile enclosure choices. Feature: High power rating with 355 kW and 650 A input current. Business Impact: Supports large pump loads and scalable system designs, minimizing the need for multiple drives. Application: High-capacity pumping in water treatment and wastewater plants. Feature: Energy-efficient drive algorithms and integrated protection. Business Impact: Reduces energy consumption, extends motor life, and lowers maintenance costs over the system lifecycle. Application: Continuous pumping operations with stringent reliability requirements. Feature: Installation and compatibility with ABB control ecosystems. Business Impact: Streamlines integration, improves fault diagnostics, and shortens time to full operational status. Application: New builds and retrofits in industrial and municipal pumping infrastructure.
Get a Quick Quote for a ABB 3ABD00059350-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059350-D?
Enquire Now
FAQs
The ACQ531-04 is designed for cabinet installation with baseline IP00 protection and optional IP20 enclosure. Follow standard motor control panel guidelines, verify wiring based on the 355 kW/650 A ratings, and leverage the built-in pump application functionality to minimize additional control wiring and simplify commissioning. Ensure panel space and cooling meet operating requirements.
Key specs include a nominal power of 355 kW and a rated input current of 650 A. It is built for pump control in water and wastewater applications, featuring integrated pump application functionality and a compact form factor suitable for cabinet installation with IP00 as standard and IP20 as an option.
Yes. The ACQ531-04 drive module is specifically designed for pump control in water and wastewater systems, offering pump-specific features, energy-efficient operation, and reliable protection. It supports large-capacity pumps and can be integrated into municipal or industrial pumping installations with flexible enclosure choices.
The module provides IP-rated enclosure options with IP00 as standard and IP20 as an available alternative, enabling safer cabinet installations in varying environments. While CE compliance is commonly expected for ABB products, always verify site-specific regulatory approvals; the design supports compliant integration within modern automation architectures.
ROI comes from energy-efficient drive control, reduced wiring complexity, and shorter commissioning times thanks to built-in pump application functionality. The robust enclosure options support longer intervals between maintenance and fewer spare parts. For multi-pump arrays, the module delivers scalable performance with predictable downtime, improving total cost of ownership in municipal and industrial pumping operations.
