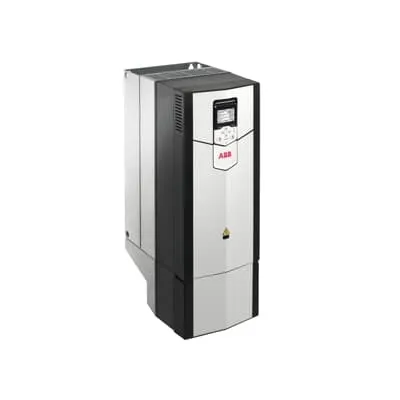

ABB ACS880-01-096A-5+D150+N5700 Drive - IP55
Part Number: 3ABD00059509-D
Quick Summary
ABB ACS880-01-096A-5+D150+N5700 is a wall-mounted LV AC drive with position control for industrial automation and material-handling applications. Engineers often grapple with space limitations, wiring complexity, and harmonic distortion that threaten uptime. The drive features IP55-rated protection and CE compliance, with optional brake chopper, EMC filter, and safe-communication options to meet stringent standards. Its compact footprint and built-in choke simplify installation while delivering precise velocity and position control for cranes, conveyors, mixers, and pumps. This combination translates into lower installation costs, easier maintenance, and improved overall equipment effectiveness in demanding facilities.
Product Information
Extended Description
3ABD00059509-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature → Business Impact → Application: Built-in harmonic choking reduces electrical noise and power quality issues, decreasing external filter costs and energy waste while helping facilities meet utility and safety standards. Application: cranes, winches, and conveyors in mining or metals plants benefit from cleaner power and fewer nuisance trips. Feature → Business Impact → Application: Compact wall-mounted footprint enables easy upgrades in space-constrained plants and supports cabinet installations when needed. Application: retrofit projects in cement plants or water treatment facilities gain faster commissioning and reduced wiring harness complexity. Feature → Business Impact → Application: Integrated position control and configurable I/O streamline machine automation, enabling precise control of pumps, fans, mixers, and extruders with a single drive. Feature → Business Impact → Application: IP55 enclosure and rugged construction reduce downtime in harsh environments found in oil & gas and marine facilities. Feature → Business Impact → Application: Optional brake chopper, EMC filter, and protocol adapters expand safety, compliance, and connectivity for Industry 4.0 implementations. Feature → Business Impact → Application: Built-in safety options and compatibility with I/O extension modules support scalable automation strategies across diverse industries.
Get a Quick Quote for a ABB 3ABD00059509-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059509-D?
Enquire Now
FAQs
Yes. The ACS880-01-096A-5+D150+N5700 is designed for wall mounting with IP55 protection and can also be installed in a cabinet as an option. Ensure adequate clearance for heat dissipation, provide appropriate braking and protection devices, and verify motor compatibility (induction motors typically used in LV drives). The unit supports straightforward commissioning and integrates with standard I/O and safety configurations, reducing wiring complexity in space-constrained installations.
The drive delivers 55 kW, 96 A, and built-in position control capabilities suitable for demanding motion tasks. Its harmonic filtering choke reduces electrical noise, while the compact form factor and configurable I/O enable accurate velocity and position feedback. This combination improves conveyor synchronization, crane hoisting accuracy, and overall process stability, minimizing mechanical wear and downtime in material-handling applications.
Key considerations include IP55 enclosure protection for demanding environments and CE compliance for European markets. The drive also supports optional features like brake chopper, EMC filter, and safety-related configurations to meet industry safety standards. Functional safety options and protocol adapters further enhance regulatory alignment and integration with plant safety systems and industrial networks.
Expected benefits come from energy efficiency, reduced harmonic distortion, and fewer external components due to built-in choke and filters. The compact design lowers installation costs and space requirements, while reliable operation and simplified commissioning lessen maintenance intensity. Over time, these factors translate to reduced downtime, longer mean time between failures, and faster project payback in heavy-duty automation environments.
The ACS880-01-096A-5+D150+N5700 supports I/O extension modules, protocol adapters, and optional EMC/filt er configurations to align with Industry 4.0 architectures. These features enable seamless connectivity with PLCs, SCADA, and MES systems, while safe communication options enhance interoperability in automated facilities such as mining, chemical plants, and power-generation sites.
