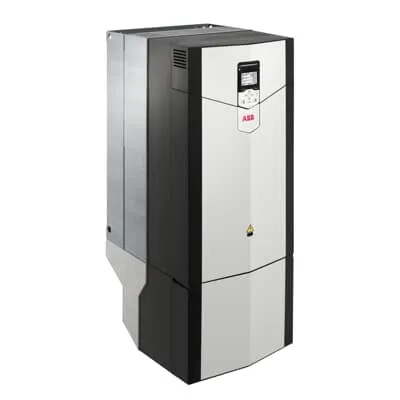

ABB ACS880-01-361A-5+D150+N5700 Drive - IP55 Enclosure
Part Number: 3ABD00059515-D
Quick Summary
ABB ACS880-01-361A-5+D150+N5700 is a LV AC wall-mounted drive with precise position control for heavy industry applications globally. Engineers often struggle with cramped spaces, complex wiring, harmonics, and downtime during commissioning, which inflates project timelines and costs. The ACS880-01 supports IP55 enclosure options and CE marking for EU compliance, with configurable functional safety features to address SIL-rated needs. With built-in harmonic filtering, easy installation, and broad compatibility to cranes, conveyors, pumps, mixers, and fans, this drive delivers reliable, scalable performance while reducing installation time and overall lifecycle costs.
Product Information
Extended Description
3ABD00059515-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Built-in harmonic filtering choke is included as standard. Business impact: Reduces harmonic distortion and improves power quality, lowering EMI and transformer loading, which translates to lower utility penalties and longer equipment life. Application: Heavy industrial environments such as oil & gas, mining, metals, cement, and pulp & paper where clean power quality is critical. Feature: Compact wall-mount design with an optional cabinet enclosure. Business impact: Simplifies installation, saves valuable floor space, and reduces wiring complexity and start-up time. Application: Retrofit projects and new facilities with tight control-room footprints, packaging lines, and metal fabrication plants. Feature: IP55 enclosure capability. Business impact: Enables reliable operation in dusty, humid, or wash-down environments, reducing unplanned downtime. Application: Cement plants, mining sites, maritime facilities, and outdoor installations. Feature: Broad load compatibility including cranes, extruders, winches, conveyors, pumps, mixers, and fans. Business impact: Lowers spare-parts inventory and accelerates commissioning by using a single drive for multiple loads. Application: Material handling, chemicals, and processing lines needing centralized control. Feature: Optional brake chopper, EMC filter, protocol adapters, and external I/O extension modules. Business impact: Eases network integration, improves EMC compliance, and expands I/O without extra hardware. Application: PROFIBUS/PROFINET, EtherNet/IP, and other industrial networks across automation architectures. Feature: Functional safety options. Business impact: Supports SIL-rated safety functions to reduce risk in critical operations. Application: Elevators, cranes, automated handling, and safety-critical processes in manufacturing and processing plants.
Get a Quick Quote for a ABB 3ABD00059515-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059515-D?
Enquire Now
FAQs
The ACS880-01-361A-5+D150+N5700 is designed for straightforward wall mounting with a compact footprint, and there is a cabinet option for higher protection. Follow ABB's installation manual, ensure adequate clearance for cooling, and utilize the built-in harmonic filtering. The enclosure supports IP55 protection when configured for appropriate environments, improving reliability in dust and moisture-prone plants.
Key specifications include a 200 kW power rating and 361 A current capability, with a low-voltage AC drive architecture and integrated harmonic filtering. The unit offers position control, a range of I/O options, and optional elements such as brake chopper and EMC filters. It is designed for flexible automation integration and reliable operation in demanding industrial environments.
Yes. The ACS880-01-361A-5+D150+N5700 supports precise position control and can drive cranes, conveyors, pumps, and other heavy loads. Its compact wall-mount form factor, IP55 readiness, and optional safety features make it suitable for demanding material-handling applications while minimizing space, wiring, and commissioning time.
The drive includes CE marking for EU compliance and supports IP55 enclosure standards for certain configurations. It also offers functional safety options that address SIL-rated requirements, enabling safer operation in automated systems. These certifications and features help with regulatory compliance, risk reduction, and smoother integration into plant safety programs.
ROI benefits come from reduced installation time, lower spare-parts inventory due to a single-drive platform for multiple loads, and improved energy efficiency through harmonic suppression. Ongoing maintenance is simplified by built-in diagnostics and ABB ecosystem compatibility, while the drive’s rugged IP55 options and safety features help minimize downtime and extend asset life.
