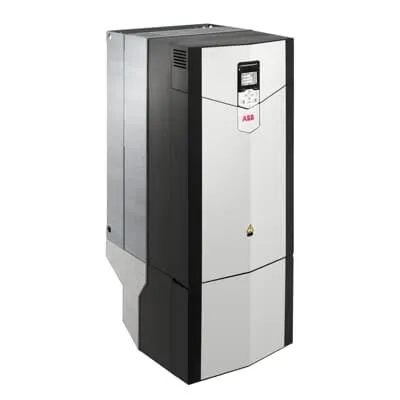

ABB 3ABD00059516-D LV AC drive with position control - IP55
Part Number: 3ABD00059516-D
Quick Summary
ABB 3ABD00059516-D is a LV AC drive with position control for industrial automation. Engineers often struggle with integrating drives into rugged environments while sustaining energy efficiency and precise motion. With IP55 enclosure support, built-in harmonic filtering, and optional EMC filter and functional safety features for SIL-capable configurations, it supports CE certification and reliable operation in demanding industries. The compact, wall-mounted form simplifies retrofits and cabinet-free installations, while clear documentation accelerates commissioning and reduces risk. This combination translates to faster deployment, improved process control, and a lower total cost of ownership across manufacturing environments.
Product Information
Extended Description
3ABD00059516-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Compact, wall-mounted ACS880-01 package delivers a small footprint with built-in harmonic filtering, reducing the need for external reactors and simplifying installation. This directly lowers total installed cost and shortens time-to-value for conveyors, pumps, and mixers. The drive’s integrated design also helps minimize wiring and panel space, enabling quicker upgrades and retrofit projects in tight environments. IP55-rated enclosure options provide rugged reliability in dusty, damp, or wash-down areas, reducing downtime and maintenance costs in water/wastewater plants, mining operations, and marine applications. The position control capability delivers precise motion for cranes, winders, extruders, and winches, improving process accuracy and throughput while lowering scrap rates. Brake chopper, EMC filter, and I/O extension modules offer flexible integration with existing PLCs and safety systems, supporting compliant, scalable automation. The drive’s compact packaging and straightforward commissioning streamline installation on new lines or retrofits, cutting project risk and startup time. Functional safety options enable SIL-capable configurations, delivering enhanced protection for high-load or hazardous processes while maintaining predictable maintenance schedules and long-term reliability.
Get a Quick Quote for a ABB 3ABD00059516-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059516-D?
Enquire Now
FAQs
The 3ABD00059516-D is designed for wall mounting as standard, with an optional cabinet install for enclosed spaces. Ensure a clean, vibration-free surface and provide appropriate cable ingress protection. The IP55-rated enclosure supports harsh environments, and a dedicated mounting kit simplifies alignment. Follow ABB installation guides for wiring, motor connection, and safety interlocks to ensure compliant commissioning and reliable operation.
This drive excels in heavy-duty motion tasks such as cranes, conveyors, pumps, winders, extruders, and fans where precise position control is critical. The built-in harmonic filtering and compact form factor support energy-efficient operation and easy integration with existing PLCs. Its rugged IP55 option and safety features make it suitable for mining, cement, oil and gas, water/wastewater, and material-handling environments.
The ACS880-01 supports CE compliance and offers IP55 enclosure protection for rugged installations. It includes built-in harmonic filtering and optional EMC filter and safety features for SIL-capable configurations, enabling safer operation in regulated settings. These certifications help meet regulatory requirements across industrial sectors, from manufacturing floors to process plants.
Benefits include reduced energy consumption through precise speed and torque control, lower maintenance costs due to fewer external components (harmonic filters, filters, and choppers), and shorter downtime thanks to reliable hardware with integrated diagnostics. The wall-mountable, compact design also reduces panel space and installation time, accelerating project ROI and lowering total cost of ownership.
Integration is supported via compatible communication adapters and modular I/O extensions. The ACS880-01 offers standard interfaces and optional modules to connect with common PLCs and fieldbus networks, simplifying data exchange, status monitoring, and remote control. ABB provides commissioning guides and application notes to help engineers map I/O, set up safety, and ensure deterministic control across automation assets.
