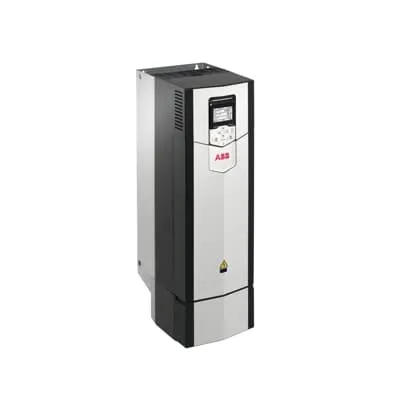

ABB ACS880-01-035A-7+D150+N5700 Drive - IP55
Part Number: 3ABD00059566-D
Quick Summary
ABB ACS880-01-035A-7+D150+N5700 drive is a wall-mounted LV AC motor drive delivering precise position control for industrial machinery. When integration into compact control panels is hindered by space, cabling, or harmonic distortion, this solution provides a streamlined, easy-to-install package. The enclosure can be configured up to IP55 and supports optional brake choppers, EMC filters, and protocol adapters, reinforcing reliability in tough environments. By combining robust performance with straightforward commissioning, it reduces engineering time and accelerates time-to-value for automation projects across conveyors, pumps, cranes, and processing lines.
Product Information
Extended Description
3ABD00059566-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Compact, wall-mounted design with easy installation → Benefit: Frees panel space and simplifies commissioning, enabling rapid deployment in tight control rooms and cabinets. Application: Suitable for conveyors, pumps, and material-handling lines in manufacturing facilities. Feature: Built-in choke for harmonic filtering → Benefit: Improves power quality, lowers electrical stress on upstream equipment, and reduces maintenance costs. Application: Heavy-load drives in metals, mining, and chemical plants where harmonic distortion is a concern. Feature: IP55 enclosure option → Benefit: Enhanced protection for harsh environments, reducing enclosure-related failures and extending service intervals. Application: Outdoor or wash-down areas in oil & gas, mining, and marine applications. Feature: Optional brake chopper, EMC filter, and protocol adapters → Benefit: Seamless PLC integration and extended control capabilities without relying on external components. Application: Crane systems, winches, winders, and complex automated lines. Feature: Compatibility with I/O extension modules and configurable safety options → Benefit: Flexible I/O expansion and functional safety alignment with plant standards, lowering integration risk. Application: Water treatment, pulp and paper, and automotive assembly lines. Feature: Compact, all-in-one package for easy commissioning → Benefit: Faster startup, reduced engineering hours, and lower total cost of ownership. Application: Any new greenfield or retrofit project needing reliable, scalable drive control.
Get a Quick Quote for a ABB 3ABD00059566-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059566-D?
Enquire Now
FAQs
This drive is designed for wall mounting with an optional cabinet. Verify the input is a suitable low-voltage three-phase supply and ensure the enclosure rating meets your environment (IP55 recommended for harsh areas). Follow ABB wiring diagrams for mains, control signals, and fieldbus connections, and utilize optional I/O extension modules to match your control system.
Key specs include a 30 kW power rating with a 35 A current draw and native position-control capability. The drive includes a built-in choke for harmonic filtering and supports optional brake chopper and EMC filter. It also offers flexible communication adapters to integrate with your PLC and control architecture.
Yes. ABB’s ACS880-01 family is designed for industrial applications like conveyors, pumps, fans, cranes, and winders. Its robust enclosure and harmonic mitigation features help maintain drive performance under heavy loads, while its compact form factor and integration options simplify retrofits in demanding mining or metal-processing environments.
The drive is CE certified and available with IP55 enclosure protection, enabling use in more demanding environments. An optional functional safety package and EMC filter further enhance regulatory compliance and safety. Built-in harmonic filtering reduces electrical stress, supporting reliability in continuous operation scenarios.
The integrated features reduce the need for external components, cutting installation time and spare parts, while the compact design saves panel space. Energy-efficient motor control, reduced harmonic distortion, and easier PLC integration translate to lower operating costs and faster project payback, especially on conveyors, pumps, and material-handling lines.
