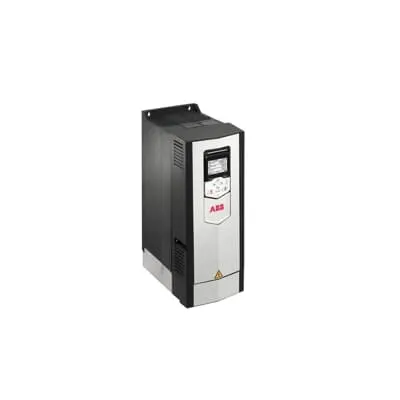

ABB 3ABD00059576-D LV AC Wall-Mounted Drive - IP55
Part Number: 3ABD00059576-D
Quick Summary
ABB 3ABD00059576-D LV AC motor drive is designed to control heavy-duty motors in industrial settings. Engineers often contend with crowded plant floors, integration headaches, and harmonic distortion that can sap efficiency. The solution features an IP55-rated enclosure, built-in harmonic filtering, and flexible options for brake choppers, EMC filters, and I/O expansion, enabling safer, more reliable operation. This wall-mounted drive supports compact installs and straightforward commissioning, delivering energy efficiency and easier maintenance for conveyors, pumps, cranes, and fans in demanding environments. By aligning with industry standards for control systems, it reduces downtime and total cost of ownership.
Product Information
Extended Description
3ABD00059576-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Compact wall-mounted design simplifies installation and frees cabinet space. Business Impact: Reduces footprint, lowers installation costs, and speeds commissioning. Application: Suitable for conveyors, pumps, fans, and cranes where floor area is limited. Feature: Built-in harmonic filtering choke improves power quality and minimizes voltage distortion. Business Impact: Boosts motor efficiency, lowers energy waste, and reduces electrical stress on drives and upstream equipment. Application: Heavy-load conveyors and mill processes with demanding harmonic profiles. Feature: IP55 enclosure option enhances durability in challenging environments. Business Impact: Enables outdoor, washdown, and dust-prone installations with reliable protection. Application: Water treatment, food and beverage lines, and outdoor plant sections. Feature: Optional brake chopper, EMC filter, and protocol adapters simplify integration. Business Impact: Safer braking, EMI compliance, and seamless PLC/SCADA communication. Application: Cranes, winders, and packaging lines needing precise stop-start control. Feature: I/O extension modules expand control capabilities without excessive wiring. Business Impact: Faster reconfiguration, scalable automation, and reduced maintenance costs. Application: Material handling, presses, and process lines requiring flexible I/O. Feature: All essential features built-in in a compact ACS880-01 package. Business Impact: Streamlined procurement, fewer vendor touchpoints, and reliable operation across multiple applications. Application: Widely used across industrial automation projects with mixed load profiles.
Get a Quick Quote for a ABB 3ABD00059576-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059576-D?
Enquire Now
FAQs
The 3ABD00059576-D is designed for straightforward wall mounting as a standard installation option. Begin by selecting a sturdy, vertical surface with adequate ventilation. Provide proper cable routes to the unit, ensure secure fastenings, and connect power, motor, and control wiring per the included ACS880-01 wiring diagram. Verify IP55 seals and check for EMC considerations before energizing. This approach minimizes commissioning time and simplifies maintenance.
Yes. The ACS880-01 family drives a wide range of applications, including conveyors, pumps, fans, and cranes. With 5.5 kW and 7.4 A ratings, the drive is suited for medium-duty conveyors and pump systems. Its built-in harmonic filtering and optional EMC filter help maintain power quality, while I/O expansion modules support PLC integration and system-wide coordination.
Key features include a 5.5 kW power rating, 7.4 A current rating, and an IP55-rated enclosure option for rugged environments. The drive also offers a built-in harmonic filtering choke, optional brake chopper, and EMC filter, along with external I/O extension modules for enhanced control. These features support safe operation, reduced electrical stress, and easier integration with automation systems.
Industries such as oil & gas, mining, metals, chemicals, cement, power generation, material handling, pulp and paper, marine, water and wastewater, food and beverage, and automotive benefit from the ACS880-01 wall-mounted drive. Primary applications include cranes, extruders, winches, conveyors, mixers, compressors, centrifuges, pumps, and fans, enabling reliable, efficient process control.
Maintenance is streamlined by the compact, all-in-one design and the availability of I/O extension modules that reduce wiring and field wiring complexity. The built-in harmonic filter improves power quality, which lowers mechanical wear and energy waste, contributing to a favorable return on investment through improved uptime, energy savings, and easier upgrades or expansions over time.
