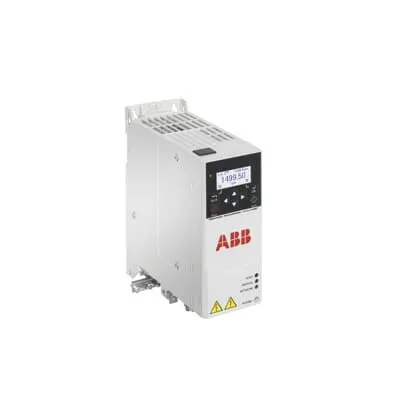

ABB 3ABD00059684 Frequency Converter - IE2 Efficiency
Part Number: 3ABD00059684
Quick Summary
ABB 3ABD00059684 frequency converter provides precise motor speed control for LV AC machinery drives in industrial automation. This compact module helps engineers optimize performance while reducing wiring complexity and panel space. Many projects struggle with integrating drive units into existing control cabinets under tight timelines; this device is designed for quick mounting and straightforward parameter setup. It carries IP20 protection and IE2 efficiency, with a 380–480 V three-phase input and PN 0.55 kW rating, ensuring reliable operation in common factory environments. By choosing this ABB drive, manufacturers gain predictable lead times and regional stocking, enabling smoother procurement for conveyors, pumps, and other automated equipment while meeting energy and safety requirements.
Product Information
Extended Description
3ABD00059684 ABB: LV AC machinery drive module, IEC: Pn 0.55 kW, 1.8 A (ACS380-040C-01A8-4+K457+L515+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSC | WMSACNURMQ | WMSACNGZH1 | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-01A8-4+K457+L515+L535 PN: 0.55kW, IN: 1.8A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
1.4 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
70 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
145 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R0
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
1.8 A
Output Current, Light-Overload Use (ILD)
1.7 A
Output Current, Heavy-Duty Use (IHD)
1.2 A
Output Power, Normal Use (Pn)
0.55 kW
Output Power, Light-Overload Use (PLD)
0.55 kW
Output Power, Heavy-Duty Use (PHD)
0.37 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature → Business Impact → Application: The 3-phase LV AC drive module supports 380-480 V input and delivers 0.55 kW (1.8 A) of output, enabling precise speed control for small motors. Impact: Improves process stability and energy efficiency, reducing waste and mismatched loads. Application: Ideal for conveyors, pumps, and fans in packaging lines and material handling. Feature → Business Impact → Application: IP20 open-type enclosure simplifies panel integration and accessibility for maintenance. Impact: Faster commissioning and easier field service, lowering downtime. Application: Suitable for retrofit projects in existing control cabinets. Feature → Business Impact → Application: IE2 efficiency class reduces operating power and heat generation. Impact: Lower energy bills and cooler cabinet environments, extending component life. Application: Continuous-duty fans and pumps in HVAC and manufacturing processes. Feature → Business Impact → Application: Compact footprint (176 mm × 70 mm × 223 mm) and light weight (1.4 kg) enable easy mounting in tight spaces. Impact: Space savings and simplified wiring harnesses. Application: Miniaturized drives in compact machines and integrated line controllers. Feature → Business Impact → Application: Compatibility with ACS380 family enables straightforward integration with existing ABB architectures. Impact: Streamlined commissioning, fewer spare parts, and faster ROI. Application: OEMs implementing modular drive systems in automated lines. Note: Stock availability across multiple warehouses supports short lead times, reducing procurement risk and accelerating project timelines.
