ABB 3ABD00059689 Frequency Converter - IP20 Open Type
Part Number: 3ABD00059689
Quick Summary
Frequency converter ABB 3ABD00059689 module provides precise motor control for 3 kW machines used in manufacturing lines. This compact LV AC drive is designed for rugged industrial environments and seamless integration with existing three-phase motors. It addresses common pain points like undersized drives, inconsistent starting torque, and limited panel space. With IP20 protection, an open-type enclosure, and a 380–480 V input range, it supports reliable operation across diverse automation settings. The device aligns with IE2 efficiency expectations and offers straightforward installation, delivering predictable performance and solid lifecycle value for engineering teams and procurement professionals.
Product Information
Extended Description

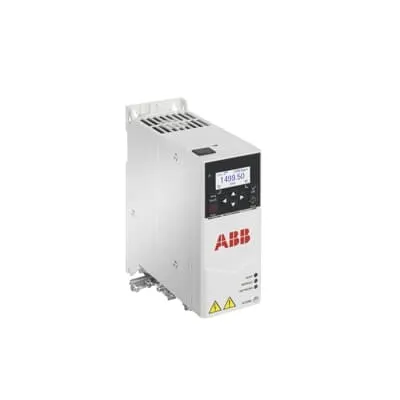

3ABD00059689 ABB: LV AC machinery drive module, IEC: Pn 3 kW, 7.2 A (ACS380-040C-07A2-4+K457+L515+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSC | WMSACNURMQ | WMSACNGZH1 | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-07A2-4+K457+L515+L535 PN: 3kW, IN: 7.2A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
1.4 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
70 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
170 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
7.2 A
Output Current, Light-Overload Use (ILD)
6.8 A
Output Current, Heavy-Duty Use (IHD)
5.6 A
Output Power, Normal Use (Pn)
3 kW
Output Power, Light-Overload Use (PLD)
3.0 kW
Output Power, Heavy-Duty Use (PHD)
2.2 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature: 3 kW output with 7.2 A nominal current enables precise speed control for conveyors, pumps, and machine tools. Business impact: improved torque profiles reduce mechanical wear and energy waste, delivering smoother operation and lower operating costs. Application: ideal for mid-size automation tasks in packaging, textile, and general manufacturing lines. Feature: 380-480 V three-phase input with 47.5–63 Hz compatibility. Business impact: flexible installation across common industrial mains, simplifying retrofits and new machine builds. Application: retrofits of legacy equipment and new line upgrades in metalworking, plastics, and material handling. Feature: IP20 protection and Open Type enclosure. Business impact: safe cabinet integration and easier maintenance with accessible wiring and cooling. Application: panel-mounted drives in controlled plant environments, where dust and incidental contact are managed. Feature: IE2 efficiency and compact dimensions (176 x 70 x 223 mm) with 1.4 kg weight. Business impact: lower energy bills and reduced heat generation, enabling denser control panels and reduced cooling requirements. Application: space-constrained installations in small automation cabinets across food & beverage, packaging, and robotics. Feature: 3-phase modular mounting (Module). Business impact: straightforward installation and future upgrades with minimal wiring changes. Application: easy integration into existing ACS380-based ecosystems and new modular drive architectures.
Get a Quick Quote for a ABB 3ABD00059689
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059689?
Enquire Now
FAQs
The drive is designed for 3-phase 380-480 V power and an IP20-protected open-type enclosure. Install in a controlled cabinet, mount the module in its designated slot, connect the three phase lines to the input terminals, and wire the motor to the output terminals per the AB ACS380 guidelines. Accessible wiring and compact footprint (176 x 70 x 223 mm) simplify panel design, while standard connectors support straightforward commissioning and safe maintenance.
Key specs include PN of 3 kW with an output current of 7.2 A, 3-phase input, and a frequency range of 47.5–63 Hz. The unit uses IE2 efficiency and the IP20 protection class. It is suitable for open-type mounting and supports typical machine loads such as conveyors, pumps, and machine tools within mid-size automation projects.
Yes. With a 3 kW rating and 7.2 A nominal current, this ABB frequency converter provides smooth speed control and torque suitable for conveyors and pumps. The IP20 enclosure and modular mounting simplify cabinet integration, while the 380–480 V three-phase input aligns with common packaging and manufacturing plant power systems.
The drive offers IP20 protection and an Open Type enclosure, suitable for controlled environments with moderate dust exposure. It operates on 380–480 V three-phase power and supports IE2 efficiency. While the data does not list CE labeling, it adheres to standard IEC-based electrical characteristics common in industrial drive systems.
Maintenance needs are typical for LVAC drives: periodic inspection of connections, cooling, and firmware updates where available. The product is listed as Active with stock at multiple warehouses, and the warranty note indicates returns for warranted items. ROI benefits come from energy efficiency (IE2), smoother motor control, reduced downtime, and compact panel space enabling higher cabinet density in automation projects.
