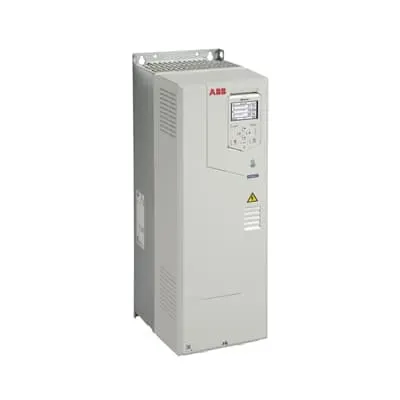

ABB ACH580-01-089A-4 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00060196-D
Quick Summary
ABB ACH580-01-089A-4 is a LV AC wall-mounted drive for HVAC systems, delivering smooth control of fans, pumps and compressors. Engineers and procurement teams often face lengthy commissioning, complex parameter setup, and inconsistent performance in HVAC projects. The drive is CE-compliant with an IP21 enclosure by default and offers IP55 and flange-mount options for tougher environments, supporting both new installations and retrofits. Its HVAC-specific primary settings menu, built-in help assistants, and optional Bluetooth capability simplify startup and remote monitoring, driving faster time-to-value. Together with its energy-efficient control strategy and ABB reliability, it reduces total cost of ownership in commercial and light-industrial HVAC applications.
Product Information
Extended Description
3ABD00060196-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature built-in HVAC control features → Business Impact reduces installation time and accelerates commissioning; Application: HVAC projects in commercial buildings and industrial facilities. The ACH580-01-089A-4 controls fans, pumps and compressors with ease, enabling stable operation of air handling units and chillers, while minimizing energy waste and wear. Feature intuitive control panel with HVAC primary settings menu and help assistants → Business Impact speeds up startup, reduces misconfiguration, and improves operator confidence; Application: quick handover and reliable daily operation in data centers and hospitals. Feature optional Bluetooth capability → Business Impact enables remote commissioning and monitoring, reducing site visits; Application: facility management teams can validate performance from a control room or remote location. Feature IP21 enclosure standard with IP55 and flange mounting options → Business Impact provides installation flexibility and environmental resilience; Application: retrofit in existing plant rooms or new builds with space constraints. Feature compatibility with HVAC equipment and ABB ACH580 family → Business Impact ensures scalable deployment and simplified maintenance; Application: integration with building management systems and future upgrades.
Get a Quick Quote for a ABB 3ABD00060196-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00060196-D?
Enquire Now
FAQs
The ACH580-01-089A-4 is a LV AC wall-mounted drive designed for HVAC applications, capable of controlling fans, pumps and compressors. Its IP21 enclosure (with IP55 option) and built-in HVAC settings simplify wiring, configuration, and commissioning, while Bluetooth readiness supports remote setup and monitoring. It integrates with standard ABB and building management system interfaces, easing retrofits and new installs alike.
Key specs include a 45 kW (Pn) power rating and 89 A current draw, making it suitable for mid-range HVAC drives. The unit ships with an IP21 enclosure by default and offers IP55 and flange-mount options for harsher environments. It is designed for LV applications and supports HVAC equipment such as fans, pumps and compressors.
Yes, the ACH580-01-089A-4 is CE-compliant, aligning with European safety and performance standards. The IP21 rating provides protection against vertically falling objects and ingress in typical indoor HVAC installations, while IP55 and flange-mount variants extend protection for more demanding environments and mounting configurations.
The HVAC-specific control features, intuitive primary settings menu, and built-in help reduce commissioning time and startup errors. Optional Bluetooth enables remote monitoring and diagnostics, helping operators optimize energy use and maintain performance. Overall, the drive supports efficient speed control for fans, pumps and compressors, contributing to lower lifecycle costs.
Yes. The ACH580-01-089A-4 is designed for reliable operation in mission-critical HVAC scenarios, with a robust enclosure, configurable protection settings, and options for IP55 mounting. Its integrated controls and remote monitoring capabilities help ensure continuous operation, rapid fault isolation, and proactive maintenance in data centers, hospitals, and manufacturing environments.
