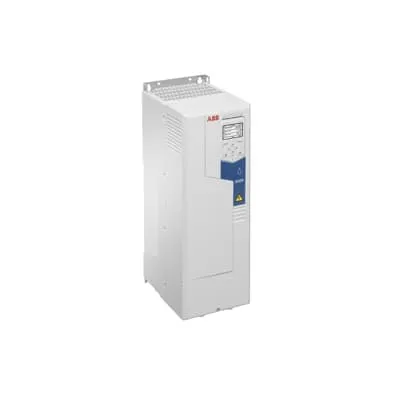

ABB 3ABD00060201-D LV AC wall-mounted drive - IP21 enclosure
Part Number: 3ABD00060201-D
Quick Summary
ABB LV AC wall-mounted drive 3ABD00060201-D delivers efficient pump speed control for water and wastewater systems. Operators often face energy waste and downtime when pumps run off-optimally; this drive helps stabilize flow and reduce wear. With IP21 standard enclosure and optional IP55 and flange-mount variants, plus sensorless flow calculation and an energy calculator, it supports reliable, compliant installations. The solution integrates Hand-Off-Auto operation, Drive Composer PC tooling, and optional Bluetooth connectivity, delivering measurable business value in uptime, energy savings, and seamless system integration for municipal and industrial pumping projects.
Product Information
Extended Description
3ABD00060201-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation → Reduces instrumentation needs and simplifies installation, enabling accurate, responsive flow control in water and wastewater networks. Business impact: lower capital costs and reduced calibration time; Application: municipal treatment plants. Multi-pump control and level control → Optimizes pump sequencing to balance demand with energy use and reduce human intervention. Business impact: improved efficiency and lifecycle cost savings; Application: lift stations and industrial pumping. Soft pipe fill and dry run protection → Gentle start-up minimizes water hammer and protects pumps from damage; Business impact: longer equipment life and maintenance savings; Application: upstream pumping stations and treatment lines. Quick ramps and impeller cleaning → Smooth acceleration/deceleration and pump cleanliness extend run-time between service calls; Business impact: higher uptime and lower overall maintenance. Hand-Off-Auto, Drive Composer, and optional Bluetooth → Streamlined commissioning and remote diagnostics; Business impact: faster project delivery and easier ongoing support; Application: field installations and remote monitoring in water/wastewater facilities. Compatibility and installation advantages → Wall-mount design with IP21 standard enclosure (IP55 option) simplifies retrofits and new-builds, while flange mounting enables flexible hardware integration; Business impact: reduced installation time and broader site compatibility. Long-tail keywords integrated: sensorless flow calculation, multi-pump control, energy calculator, water and wastewater pumping, IP21 enclosure, wall-mounted drive, Drive Composer, Hand-Off-Auto, remote diagnostics, dry-run protection.
Get a Quick Quote for a ABB 3ABD00060201-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00060201-D?
Enquire Now
FAQs
Yes. The 3ABD00060201-D is a wall-mounted LV AC drive designed for straightforward installation with an IP21 standard enclosure and optional IP55 flange-mount variants. It supports quick integration with common panel layouts and ABB Drive Composer tooling for streamlined commissioning.
Key specs include a Pn of 45 kW and a current rating of 89 A, suitable for medium-scale pumping in water and wastewater applications. Features such as sensorless flow calculation and multi-pump control optimize pump sequencing and energy use while maintaining process stability.
The base model comes with an IP21 enclosure standard, with IP55 and flange mounting variants available for more demanding environments. This provides installation flexibility across indoor plant rooms and outdoor pump stations when paired with appropriate enclosures.
By enabling energy-efficient operation through an energy calculator, sensorless flow control, and dry run protection, the drive reduces energy consumption and wear. Multi-pump sequencing lowers maintenance cycles and downtime, delivering measurable lifetime cost savings for water and wastewater facilities.
Optional Bluetooth connectivity and the Drive Composer PC tool simplify commissioning, diagnostics, and remote monitoring. Hand-Off-Auto control panels enhance field operability, while built-in energy analytics support ongoing performance verification and optimization.
