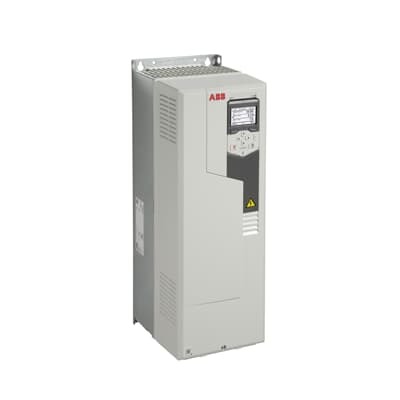

ABB 3ABD00060210-D ACS580 Frequency Converter - IP21
Part Number: 3ABD00060210-D
Quick Summary
ABB ACS580 frequency converter provides precise LV AC drive control for 45 kW motors in wall-mounted applications. Many panel builders struggle with space, wiring complexity, and slow commissioning in compact control cabinets. This drive features IP21 protection and a Type 1 enclosure, designed for CE-compliant industrial environments. With a 3-day lead time and multi-warehouse stocking, ABB ACS580 helps speed project timelines and minimize downtime in factory automation projects. Additionally, this solution supports lifecycle management with familiar 3-phase electrical standards and consistent service across stock locations. Its compact footprint helps reduce cabinet size and simplifies installation. Engineers can rely on predictable performance in varying frequency and load conditions.
Product Information
Extended Description
3ABD00060210-D ABB: LV AC general purpose wall-mounted drive, IEC: Pn 45 kW, 89 A (ACS580-01-089A-4+X1590)
Configuration Only
No
Country of Origin
China (CN)
Lead Time
3 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
CSB | WMSACNURMQ | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS580-01-089A-4+X1590 PN: 45kW, IN: 89A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
28.5 kg
Product Net Depth / Length
295 mm
Product Net Height
732 mm
Product Net Width
203 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
89 A
Output Current, Light-Overload Use (ILD)
83 A
Output Current, Heavy-Duty Use (IHD)
72 A
Output Power, Normal Use (Pn)
45 kW
Output Power, Light-Overload Use (PLD)
45 kW
Output Power, Heavy-Duty Use (PHD)
37 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
frequency converter
Feature: 45 kW PN output with 89 A current capability aligns with standard industrial motors. Business Impact: Enables a single-drive solution for mid-range conveyors and pumps, reducing drive count and wiring complexity. Application: Suitable for manufacturing lines and packaging equipment where space is at a premium. Feature: IP21 protection and Type 1 enclosure support safe wall-mounted installation in typical factory environments. Business Impact: Improves personnel safety and reduces enclosure costs while ensuring compliance with common industrial standards. Application: Ideal for control panels in machine tools and material handling. Feature: 380-480 V three-phase input with 47.5-63 Hz operation provides regional adaptability. Business Impact: Simplifies sourcing across global plants and promotes consistent performance across sites. Application: Global manufacturing setups with mixed supply conditions. Feature: IE2 efficiency and 45 kW output help lower energy costs during high-load operations. Business Impact: Reduces total cost of ownership and supports sustainability goals. Application: Continuous process lines and heavy-load drives. Feature: Lead time of 3 days and stock at multiple warehouses speed project delivery. Business Impact: Minimizes downtime and accelerates commissioning in new builds and retrofits. Application: Just-in-time automation projects in modern factories. Feature: Compact footprint and 28.5 kg weight simplify installation and maintenance planning. Business Impact: Lowers installation risk and cabinet footprint, enabling faster upgrades. Application: Retrofit projects in space-constrained control rooms. Feature: Warranty return policy and reliable service from stocked inventories. Business Impact: Improves risk management and serviceability across regional maintenance programs. Application: Critical industrial installations requiring rapid support.
Get a Quick Quote for a ABB 3ABD00060210-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00060210-D?
Enquire Now
FAQs
The drive is designed for wall-mounted installation with IP21 protection and a Type 1 enclosure. It accepts a 380-480 V three-phase input, operates at 47.5-63 Hz, and delivers 89 A output for PN 45 kW. Ensure adequate internal space, proper ventilation, and mounting per installation guidelines to maintain performance and accessibility for maintenance.
The ACS580 provides smooth acceleration/deceleration, precise speed control, and IE2-level efficiency. This reduces mechanical stress, lowers energy consumption during variable-speed operation, and extends motor life. The result is reduced maintenance costs and better process stability in dynamic applications like conveyors and pumps.
Yes. With PN 45 kW and IN 89 A, the 380-480 V three-phase ACS580 suits mid-range conveyors, pumps, and similar equipment. Its wall-mounted form factor helps integrate into compact panels, while its frequency range supports varied load profiles common in material handling and process automation.
The drive features IP21 protection and a Type 1 enclosure, designed for robust industrial environments. It uses a 3-phase input and is commonly included in CE-compliant installations. It originates from China and is stocked across multiple warehouses to support regional compliance and rapid deployment.
Warranty terms require return of the product for warranty processing. The unit is stocked at several warehouses to shorten delivery times, with a typical 3-day lead time. These factors, together with reduced energy use and smoother operation, drive faster ROI and lower lifecycle costs in automation projects.
