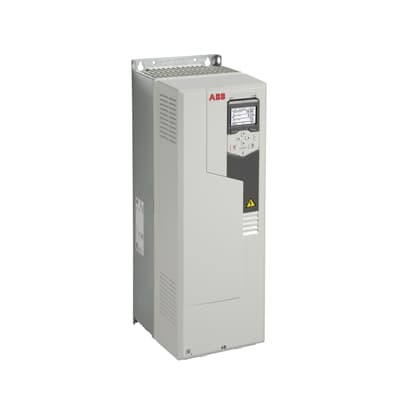

ABB 3ABD00060212-D LVAC Wall-Mounted Drive - IE2
Part Number: 3ABD00060212-D
Quick Summary
ABB 3ABD00060212-D is a LV AC wall-mounted drive that controls 3-phase motors in industrial systems. Engineers need compact installation, reliable performance, and seamless integration with existing control architectures. It delivers IP21 enclosure protection and IE2 efficiency, with a 380-480 V three-phase input and an 89 A nominal output at 45 kW. This drive supports fast commissioning and observed improvements in motor control accuracy, reducing energy waste and downtime. The unit ships from multiple warehouses with a 3-day lead time, ensuring quick response for project ramp-ups. By aligning with standard ABB components and the ACS580 lineage, it simplifies spare-part compatibility and service planning for OEMs and end-users alike.
Product Information
Extended Description
3ABD00060212-D ABB: LV AC general purpose wall-mounted drive, IEC: Pn 45 kW, 89 A (ACS580-01-089A-4+N7511+J404)
Configuration Only
No
Country of Origin
China (CN)
Lead Time
3 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
WMSACNURMQ | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS580-01-089A-4+N7511+J404 PN: 45kW, IN: 89A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
34.5 kg
Product Net Depth / Length
258 mm
Product Net Height
600 mm
Product Net Width
203 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
89 A
Output Current, Light-Overload Use (ILD)
83 A
Output Current, Heavy-Duty Use (IHD)
72 A
Output Power, Normal Use (Pn)
45 kW
Output Power, Light-Overload Use (PLD)
45 kW
Output Power, Heavy-Duty Use (PHD)
37 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Power rating and current capability (PN 45 kW, IN 89 A at 380-480 V) enable robust motor control with a compact footprint. This translates to high-torque starts for conveyors, pumps, and fans while reducing installation costs and control cabinet space. IP21 enclosure protection and Type 1 NEMA compatibility provide reliable protection in general industrial environments, lowering enclosure upgrade needs and simplifying installation in standard machine rooms. IE2 efficiency supports lower energy consumption across duty cycles, contributing to cooler operation and reduced cooling requirements in continuous processes like material handling and packaging lines. Lead-time and warehouse availability (Lead Time 3 day; Stocked At Warehouses: WMSACNURMQ, CSC, WMSACNGZH1) enable faster project ramp-ups and minimize downtime during upgrades. Compatibility with ACS580-01-089A-4+N7511+J404 configurations ensures straightforward spare-parts planning and smoother retrofits. The wall-mounted form factor (600 mm height, 203 mm width, 258 mm depth) and 34.5 kg weight simplify installation, reducing mounting complexity in existing control cabinets and production lines.
