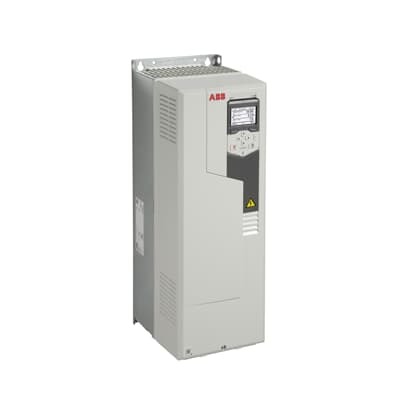

ABB 3ABD00060214-D Frequency Converter - IE2 Drive
Part Number: 3ABD00060214-D
Quick Summary
ABB 3ABD00060214-D frequency converter is a low-voltage AC general purpose drive designed for wall-mounted motor control in industrial environments. For engineers and maintenance teams, space constraints, wiring complexity, and downtime can derail projects; this compact unit reduces panel footprint and simplifies installation. It delivers IE2 efficiency, IP21 protection, and a NEMA Type 1 enclosure, providing predictable performance in harsh factory settings. With 380-480 V three-phase input, 45 kW output and 89 A nominal current, it matches common plant power architectures and supports scalable control. Designed for fast lead times and easy integration with the ACS580 family, it helps lower total cost of ownership through energy savings and reliable operation.
Product Information
Extended Description
3ABD00060214-D ABB: LV AC general purpose wall-mounted drive, IEC: Pn 45 kW, 89 A (ACS580-01-089A-4+N7530)
Configuration Only
No
Country of Origin
China (CN)
Lead Time
3 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
WMSACNGZH1 | WMSACNURMQ | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS580-01-089A-4+N7530 PN: 45kW, IN: 89A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
28.5 kg
Product Net Depth / Length
295 mm
Product Net Height
732 mm
Product Net Width
203 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
89 A
Output Current, Light-Overload Use (ILD)
83 A
Output Current, Heavy-Duty Use (IHD)
72 A
Output Power, Normal Use (Pn)
45 kW
Output Power, Light-Overload Use (PLD)
45 kW
Output Power, Heavy-Duty Use (PHD)
37 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
frequency converter
Feature: Wall-mounted, IP21 protection and NEMA Type 1 enclosure. Business Impact: Enables compact control cabinets, easier heat management, and safer air intake in busy shop floors. Application: Ideal for machine tools, small conveyors, and localized motor control stations where space is at a premium. Feature: 380-480 V three-phase input with 89 A nominal current and 45 kW output. Business Impact: Supports high-power motors without multiple drives, reducing wiring complexity and maintenance cycles. Application: Conveyor systems, pumps, and fans in medium-scale automation lines. Feature: IE2 efficiency rating. Business Impact: Lowers energy consumption and operating costs during continuous operation, accelerating return on investment. Application: Processing lines and continuous-duty applications where efficiency matters. Feature: Frequency range 47.5-63 Hz and robust ruggedization (IP21, Type1). Business Impact: Ensures reliable performance across regional power quality differences and varying ambient conditions. Application: Global deployments and OEM integrations for packaging and material handling. Feature: Lead time of 3 days and multiple stocked warehouses. Business Impact: Reduces project downtime and accelerates uptime in retrofit and upgrade projects. Application: Critical spares management and rapid replacement in manufacturing cells. Feature: Compatibility with ACS580 family and module-based control (N7530). Business Impact: Streamlined commissioning, unified spare parts, and simplified maintenance. Application: Automation projects requiring consistent ABB component families for long-term support. Objection handling: Warranty policy and returns are clearly defined (warranty returns must be handled per distributor terms), while the drive’s solid efficiency and space-saving design mitigate total cost of ownership and inventory complexity.
Get a Quick Quote for a ABB 3ABD00060214-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00060214-D?
Enquire Now
FAQs
Yes. The drive supports 380-480 V three-phase supply and is designed for wall-mounted installation with a Type 1 enclosure. It uses a 89 A nominal current specification for a 45 kW output, and its IP21 rating suits typical factory environments. It is stocked for quick deployment and can integrate with existing ABB ACS580 components to simplify commissioning and spare parts planning.
Key specs include 45 kW PN, 89 A nominal current, 380-480 V input, and 47.5-63 Hz operation. It features IE2 efficiency and a 3-phase design with a frame size R4. The enclosure is wall-mounted (Type1), and it weighs approximately 28.5 kg. These attributes enable reliable high-power motor control in compact footprints.
Absolutely. The 45 kW output with 89 A nominal current supports medium-to-large motors typical on conveyors, pumps, and fans. Its compact wall-mount design and robust protection (IP21, Type1) make it suitable for control cabinets adjacent to equipment. The device’s frequency range supports precise speed control at standard process rates.
The drive is rated IE2 for energy efficiency and IP21 with a Type1 enclosure for general-purpose industrial use. Its specifications align with common electrical standards for low-voltage drives and industrial control gear. Always verify distributor documentation for country-specific CE or regulatory markings and confirm origin (China) as part of supplier compliance.
Lead time is listed as 3 days with multiple stocked warehouses, enabling rapid replacement and project ramp-up. The IE2 efficiency reduces ongoing energy costs, while the compact footprint lowers panel space and wiring complexity. Warranty terms require return if defects arise, but the overall reliability and compatibility with the ACS580 family support lower total cost of ownership through easier maintenance and faster repairs.
