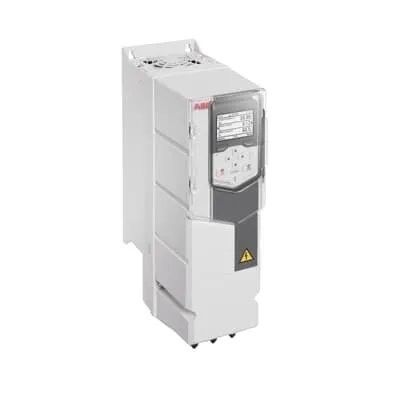

ABB ACS580-01-09A5-4 LV AC Drive - IP21/IP55 Ready
Part Number: 3ABD50000038969
Quick Summary
ABB ACS580-01-09A5-4 LV AC drive controls motors in light-industrial applications such as compressors, conveyors, pumps, and fans. It is designed for plug-in readiness to reduce installation time and wiring complexity, easing commissioning and ongoing maintenance. The drive features an IP21 standard enclosure with IP55 option for tougher environments, providing robust protection and reliability. For engineers and maintenance teams, its built-in settings and assistants translate to faster setup, predictable performance, and a clear path to energy-efficient, scalable plant operation across OEM and plant-floor workflows.
Product Information
Extended Description
3ABD50000038969 ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Plug-in ready installation minimizes hardware needs and accelerates implementation, lowering total cost of ownership and reducing commissioning time on new lines and retrofits, particularly for compressors, conveyors, and pumps. Feature → Business Impact → Application: Built-in essential features and an intuitive settings menu enable fast, error-resistant configuration, improving uptime and operator confidence during start-up in plastics, food & beverage, and material handling environments. Feature → Business Impact → Application: IP21 enclosure standard with IP55 option supports operation in varied plant conditions, delivering reliable performance on shop floors and in moderate-temperature zones without excessive enclosure upgrades. Feature → Business Impact → Application: Variable and constant torque control delivers precise motor performance, improving energy efficiency and process stability for fans, extruders, centrifuges, and mixers. Feature → Business Impact → Application: Wall-mounted design with optional flange mounting provides flexible installation and space savings, simplifying integration alongside conveyors and pumps in compact electrical cabinets.
Get a Quick Quote for a ABB 3ABD50000038969
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038969?
Enquire Now
FAQs
The ACS580-01-09A5-4 is designed for simple wall mounting with plug-in readiness, minimizing the need for additional hardware. Ensure a suitable clean wall surface, provide proper spacing for cooling, and connect to standard AC power and motor leads. Use the built-in setup assistants to select motor data, torque, and speed profiles, which speeds up commissioning while ensuring safe and compliant operation.
Key specs include a 4 kW rating and 9.4 A current, suitable for small to mid-size motors. The drive supports variable and constant torque control, enabling precise motor performance across a wide operational range. This combination delivers improved process control, energy efficiency, and consistent torque delivery for diverse loads such as pumps and fans.
Yes. The ACS580-01-09A5-4 is designed for variable and constant torque applications, making it suitable for pumps, fans, and similar loads in light-industrial settings. Its plug-in readiness, built-in features, and flexible mounting options help optimize energy use, reduce commissioning time, and improve process stability in conveyor lines, air handling, and fluid handling systems.
The drive ships with an IP21 standard enclosure and offers an IP55 option for harsher environments. It is also designed for wall-mounted installation, with optional flange mounting units available, providing installation flexibility while maintaining protection levels suitable for general industrial environments.
Built-in features and straightforward setup reduce maintenance time and spares needs, while precise motor control improves energy efficiency and process reliability. The compact, modular design supports scalable upgrades across multiple lines, enabling a faster return on investment through reduced downtime, lower energy consumption, and easier retrofits in existing equipment fleets.
