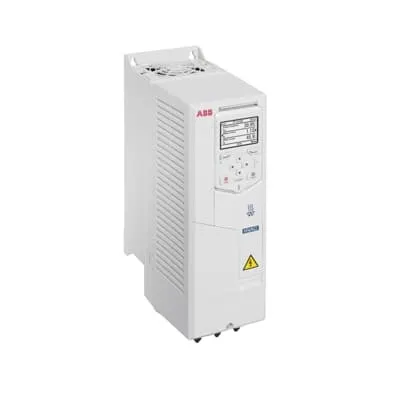

ABB ACH580-01-09A5-4 LV AC wall-mounted drive - IP21
Part Number: 3ABD50000038986
Quick Summary
ACH580 HVAC drive is a LV AC wall-mounted controller designed to optimize the performance of fans, pumps, and compressors across commercial and industrial HVAC installations. In practice, engineers often contend with slow startups, inconsistent setpoints, and lengthy commissioning; this drive accelerates the process with HVAC-specific primary settings, guided help, and built-in protection. The device carries CE certification and an IP21 enclosure, with IP55 and flange-mount options to fit tighter spaces or harsher environments, ensuring compliance and reliable operation. Optional Bluetooth enables remote commissioning and monitoring, reducing site visits and maintenance costs, while the compact, wall-mounted design simplifies retrofits and new builds alike, delivering measurable business value.
Product Information
Extended Description
3ABD50000038986 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580 HVAC drive includes HVAC-specific control features that optimize fans, pumps, and compressors, leading to energy efficiency gains and reduced wear on critical equipment. This translates into lower operating costs and longer equipment life in air handling units and cooling systems. Application: mid-to-large HVAC installations needing dependable, energy-conscious drive control. Feature → Business Impact → Application: An intuitive HVAC primary settings menu and guided commissioning shorten startup times and minimize configuration errors, accelerating project timelines and lowering labor costs. Application: building startups, retrofits, and service upgrades where quick, reliable commissioning matters. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, minimizing on-site visits and enabling proactive maintenance. Application: facilities with access restrictions or remote equipment rooms. Feature → Business Impact → Application: IP21 enclosure with wall-mount flexibility, plus IP55 and flange-mount options, provide installation adaptability for compact mechanical rooms and outdoor-adjacent spaces. Application: retrofit jobs and new builds with space constraints. Feature → Business Impact → Application: 4 kW, 9.4 A rating ensures appropriate sizing for small to medium HVAC drives, reducing over‑provisioning and improving power quality. Application: systems where precise load matching and robust protection are essential. Feature → Business Impact → Application: Built‑in protection and diagnostics improve reliability and simplify maintenance planning. Application: critical environments such as data centers or clean rooms where uptime is mandatory.
Get a Quick Quote for a ABB 3ABD50000038986
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038986?
Enquire Now
FAQs
Yes. The ACH580-01-09A5-4 is designed for wall-mounted installation in HVAC environments and supports retrofit projects. Its IP21 enclosure and compact footprint make it compatible with standard electrical rooms, while the HVAC-specific control features simplify integration with fans, pumps and compressors already in service. For retrofits, verify supply voltage and motor rating align with the 4 kW, 9.4 A output to ensure smooth compatibility with existing equipment.
The unit is rated at 4 kW with a nominal current of 9.4 A, enabling precise motor control for HVAC fans, pumps and compressors. This sizing supports energy-saving strategies such as soft-start/stop and speed modulation, reducing peak demand and improving power factor. In practical terms, you can expect lower energy consumption during part-load conditions and smoother ramping during startup, which reduces mechanical stress and extends motor life.
Ideal for air handling units, rooftop units, chillers, and packaged HVAC systems needing reliable variable speed control. The built-in HVAC-friendly settings streamline sensor feedback, fan/pump control, and compressor modulation. For facilities prioritizing energy efficiency and precise environmental control, the ACH580 delivers improved setpoint tracking, reduced noise, and consistent humidity control in commercial spaces.
The ACH580 HVAC drive features CE certification and an IP21 enclosure as standard, with optional IP55 and flange mounting for tougher environments or space constraints. These certifications and protections ensure compliance with European standards while enabling reliable operation in mechanical rooms, plant rooms, and exposed locations. If regulatory requirements include IP ratings or specific mounting configurations, consult the optional enclosure options to meet your site needs.
The optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site service visits and enabling faster issue diagnosis. This translates to lower maintenance labor costs and shorter downtime during changes in setpoints or configurations. Over the life of an HVAC installation, these features contribute to a lower total cost of ownership through energy savings, improved uptime, and quicker, data-driven maintenance decisions.
