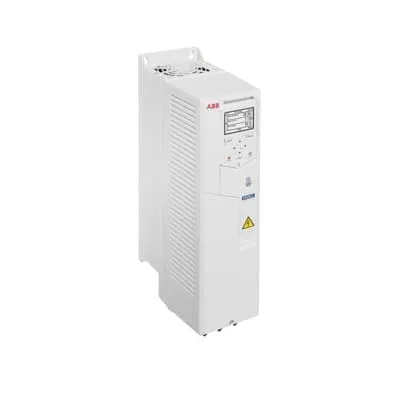

ABB ACH580-01-018A-4 HVAC Drive - IP21 Enclosure
Part Number: 3ABD50000038993
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC controller that optimizes fans, pumps, and compressors in commercial HVAC systems. It reduces commissioning time and startup effort by offering an HVAC-specific primary settings menu and intuitive help assistants. Standard IP21 enclosure with optional IP55 and flange mounting provides installation flexibility to suit a range of environments, while Bluetooth capability enables remote commissioning and monitoring for service efficiency. This combination helps engineers meet energy targets and deliver reliable operation in mission-critical facilities, turning complex HVAC control into a straightforward, repeatable process. In practice, it translates to lower total cost of ownership and faster time-to-value for building projects.
Product Information
Extended Description
3ABD50000038993 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors → Business Impact: Simplified startup, reduced commissioning time, and smoother seasonal transitions → Application: Air handling units, rooftop units, and chillers in commercial buildings. Feature: Wall-mounted LV drive with IP21 enclosure → Business Impact: Space-saving installation with proven protection in standard environments → Application: Close-to-motor installations in mechanical rooms and ceiling penetrations. Feature: Optional IP55 and flange mounting units → Business Impact: Enhanced reliability in harsher environments and flexible mounting options → Application: Outdoor or damp locations and retrofit projects. Feature: Bluetooth-enabled commissioning and monitoring → Business Impact: Remote setup, diagnostics, and reduced现场 visit costs → Application: Commissioning teams and remote maintenance across multiple sites. Feature: Intuitive HVAC primary settings menu and help assistants → Business Impact: Faster setup, fewer human errors, and consistent operation → Application: New installations and system retrofits with varied air-handling configurations.
Get a Quick Quote for a ABB 3ABD50000038993
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038993?
Enquire Now
FAQs
This ABB ACH580 model is designed for HVAC systems that use fans, pumps and compressors, including air handling units, chillers, and rooftop units. With a 7.5 kW rating and 17 A current, it provides precise speed control for mid-size HVAC loads. Its wall-mounted IP21 enclosure supports standard environments, while the Bluetooth option enables remote setup and monitoring to simplify multi-site deployments.
The drive delivers smooth, variable-speed control tailored to HVAC loads, reducing motor start-up peaks and optimizing fan and pump speeds to match demand. Built-in HVAC-specific parameters enable optimized airflow and refrigerant management, translating into measurable energy savings, lower peak demand charges, and improved overall system COP for building projects.
Install the ACH580-01-018A-4 on a suitable wall location with adequate clearance for ventilation and wiring access. Standard IP21 enclosure is suitable for typical indoor mechanical rooms; IP55 and flange mounting options expand installation flexibility for harsher or outdoor-adjacent environments. Ensure compatible 3-phase supply and proper wiring to the HVAC loads, and plan for Bluetooth-enabled commissioning if remote setup is desired.
Yes. The ACH580-01-018A-4 includes Bluetooth capability, enabling commissioning and ongoing monitoring from a distance. This supports remote fault diagnosis, software updates, and performance tuning without on-site visits, reducing maintenance downtime and travel costs for service teams managing multiple HVAC installations.
The drive uses standard low-voltage HVAC motor protections and EMI/RFI considerations, with IP-rated enclosures (IP21 standard and IP55 option) to meet common safety requirements in mechanical rooms and protected locations. Its HVAC-optimized controls and intuitive interfaces help ensure reliable operation, easier compliance with project safety specs, and predictable performance over time.
