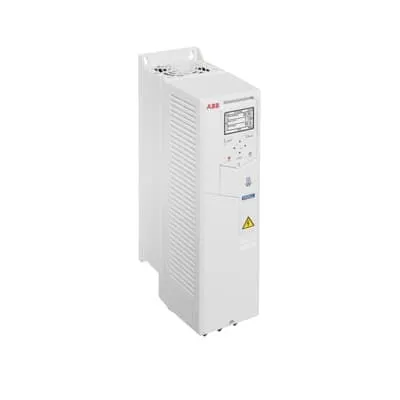

ABB ACH580-01-026A-4 HVAC LV Drive - IP21 Bluetooth
Part Number: 3ABD50000038994
Quick Summary
ABB ACH580-01-026A-4 is an LV AC wall-mounted drive that optimizes HVAC system speed control and energy efficiency. Many HVAC installers struggle with long commissioning times and inconsistent performance when integrating drives with fans, pumps, and chillers. The ACH580-01 features built-in HVAC control logic, IP21 protection, and an intuitive primary settings menu, with help assistants that streamline startup and commissioning. Optional Bluetooth enables remote commissioning and monitoring, reducing on-site visits and downtime. With IP21 standard and IP55/flange mounting options, the drive offers flexible installation in machine rooms and equipment closets. By simplifying setup and improving energy performance, this drive supports lower lifecycle costs and easier compliance in building services environments.
Product Information
Extended Description
3ABD50000038994 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control logic that directly manages fans, pumps, and compressors. Business Impact: Reduces commissioning time and startup risk, delivering stable operation from day one. Application: Ideal for air handling units, chillers, and packaged rooftop units where precise speed control improves comfort and system reliability. Feature: IP21 enclosure with wall-mount design, plus IP55 and flange options. Business Impact: Eases installation in service corridors and mechanical rooms while maintaining protection in challenging environments. Application: Suitable for standard HVAC rooms and retrofit projects where space is at a premium. Feature: HVAC-specific primary settings menu and on-device help assistants. Business Impact: Accelerates parameter setup, minimizes human error, and speeds up supplier handover. Application: Field startups, commissioning teams, and facilities maintenance programs. Feature: Optional Bluetooth capability for commissioning and monitoring. Business Impact: Enables remote configuration, reduces site visits, and supports proactive maintenance planning. Application: Remote sites, multi-building campuses, and retrofit deployments where access is limited. Feature: Energy-efficient speed control during variable loads. Business Impact: Lowers energy consumption and peak demand, contributing to lower operating costs. Application: Commercial buildings, data centers, and process HVAC where fan and pump loads vary throughout the day. Feature: CE-certified protection with scalable mounting options. Business Impact: Ensures regulatory compliance and safer operation across industries. Application: Industrial HVAC systems and building-services projects requiring standard-compliant drives.
Get a Quick Quote for a ABB 3ABD50000038994
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038994?
Enquire Now
FAQs
The ACH580-01-026A-4 is designed to drive LV AC motors for HVAC applications, including fans, pumps, and compressors. It supports integration with air handling units and chillers, enabling precise speed control and coordinated operation with building management systems. This compatibility reduces wiring complexity and ensures consistent performance across equipment trains.
Key specs include a nominal power of 11 kW and a maximum current of 25 A, configured in a wall-mounted IP21 enclosure with optional IP55 protection. The device is CE-certified and supports HVAC-specific control features. These parameters ensure reliable operation in standard HVAC rooms while providing protection suitable for commercial building environments.
The drive excels in controlling fans, pumps, and compressors in air handling units, chillers, and packaged systems. It is well-suited for buildings with variable air volume needs, energy-management goals, and retrofit projects where quiet operation and energy efficiency are priorities. Its HVAC-centric settings simplify commissioning for building services engineers.
This ABB drive is CE-certified and offers IP21 protection with optional IP55 and flange mounting configurations. These certifications and protections support safe installation in typical HVAC environments and align with regulatory expectations for commercial and industrial building systems.
The built-in HVAC features, intuitive settings, and optional Bluetooth reduce commissioning time and field service visits, lowering labor costs. Remote monitoring enables proactive maintenance, reducing downtime. Over the life of an HVAC installation, the ACH580-01-026A-4 can deliver faster payback through energy savings, improved reliability, and simpler compliance reporting.
