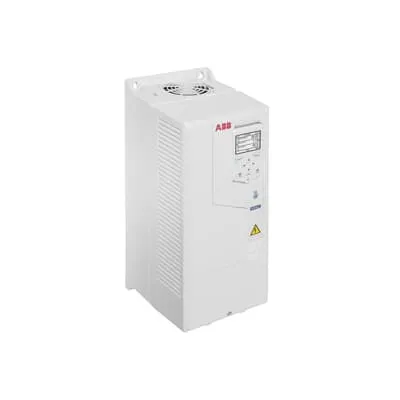

ABB ACH580-01-033A-4 HVAC Drive - IP21/IP55 Options
Part Number: 3ABD50000038995
Quick Summary
ABB ACH580-01-033A-4 HVAC drive controls fans, pumps and compressors in LV AC HVAC systems. Installing, commissioning, and tuning drives for HVAC can be time-consuming, increasing startup risk and energy waste if settings are misapplied. This model is CE-compliant with an IP21 enclosure, and IP55 mounting options are available to match your installation environment. Designed for HVAC projects, it delivers energy-efficient control, reduces commissioning time, and supports remote monitoring via optional Bluetooth for modern facilities.
Product Information
Extended Description
3ABD50000038995 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control for fans, pumps and compressors enables integrated management of common HVAC loads, simplifying wiring and reducing commissioning time. This translates into lower project costs and more predictable performance across the system. Ideal for air handling units and chillers in commercial buildings. Intuitive control panel with HVAC-specific primary settings menu and help assistants speeds startup, reduces training needs, and minimizes operator error. Field deployments in retrofit projects or new builds benefit from consistent parameter settings and faster fault isolation. Optional Bluetooth capability for remote commissioning and monitoring reduces on-site visits and enables rapid troubleshooting across multiple sites, supporting modern facility management. Multi-site campuses and service-heavy operations gain in uptime and responsiveness. IP21 enclosure provides standard protection, with IP55 mounting options to withstand varying environments. This enables flexible installation in space-constrained rooms and enhances service access during maintenance. Wall mounting simplifies integration in plant rooms and equipment closets. With a 15 kW, 32 A rating, the ACH580-01-033A-4 delivers robust drive performance for HVAC loads while optimizing energy use through advanced motor-control algorithms. Built-in features reduce energy waste and support stable operation of air handling units and chillers, lowering total cost of ownership across the system.
Get a Quick Quote for a ABB 3ABD50000038995
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038995?
Enquire Now
FAQs
Begin with confirming a suitable wall space and ensure the IP21 rated enclosure is accessible for wiring. Mount the unit on the wall, connect power and motor leads per the installation manual, and use the HVAC-specific settings menu to configure basic parameters. If Bluetooth is available, enable it for remote commissioning and monitor startup performance from the control room.
Key features include built-in HVAC control for fans, pumps and compressors, a 15 kW rating with 32 A current capability, and an HVAC-optimized control panel. The drive supports straightforward commissioning, energy-efficient operation, and optional remote monitoring via Bluetooth. These capabilities translate to reliable start-up, reduced energy consumption, and easier maintenance across AHUs and chillers.
Yes. The ACH580-01-033A-4 is designed for HVAC applications and provides integrated control for air handling units, fans, pumps, and compressors found in AHUs and chillers. Its wall-mount form factor and affordable 15 kW rating make it a practical choice for mid-size HVAC circuits, delivering consistent performance and energy efficiency in commercial facilities.
The drive is CE-compliant and comes with a standard IP21 enclosure, with IP55 mounting options available for harsher environments. Optional Bluetooth capability supports remote commissioning and monitoring. These features help ensure regulatory compliance and suitable protection for a range of installation environments in building HVAC systems.
Expect a faster project timeline due to simplified installation and commissioning, plus energy savings from optimized motor control in fans and pumps. Remote monitoring via Bluetooth reduces on-site visits, lowering service costs and downtime. The combination of improved reliability and easier maintenance supports a favorable return on investment for building operators and industrial facilities.
