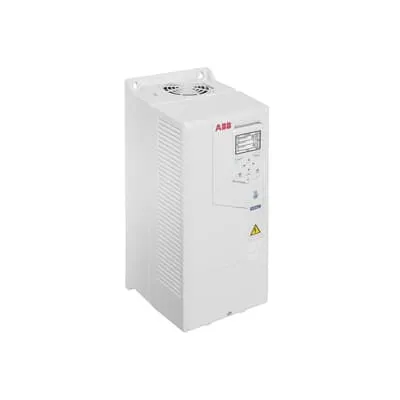

ABB ACH580-01-039A-4 HVAC Drive - IP21/IP55
Part Number: 3ABD50000038996
Quick Summary
ABB ACH580-01-039A-4 HVAC drive is a wall-mounted LV controller for HVAC systems. This compact solution targets precise control of fans, pumps and compressors to drive energy efficiency. The design supports CE readiness and protection ratings, with IP21 as standard and IP55 options available for tougher environments, enabling reliable operation in service tunnels and equipment rooms. By reducing commissioning time and simplifying startup, it delivers faster time-to-value. The solution also integrates Bluetooth commissioning, easing remote monitoring and maintenance, while keeping primary HVAC applications front and center for هزینه- and energy-conscious projects.
Product Information
Extended Description
3ABD50000038996 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580-01-039A-4 includes built-in HVAC control for fans, pumps and compressors, delivering energy-efficient operation and simplified wiring. This translates to lower life-cycle costs and consistent performance in air-handling units and chillers. Application: HVAC systems seeking reliability and reduced energy consumption. Feature → Business Impact → Application: An intuitive HVAC-specific primary settings menu and help assistants shorten startup and commissioning time, enabling faster project delivery and reduced field labor. Application: New installations and retrofits where time-to-commission is critical. Feature → Business Impact → Application: Optional Bluetooth capability enables commissioning and monitoring from a distance, reducing site visits and enabling proactive maintenance. Application: Remote facilities management and commissioning in large campus environments. Feature → Business Impact → Application: IP21 enclosure standard with IP55 and flange mounting options provide installation flexibility and environmental protection, ensuring reliable operation in walls, rooms and damp locations. Application: Wall-mounted installations in HVAC rooms and equipment closets. Feature → Business Impact → Application: Compact form factor and integrated features minimize wiring, save panel space and simplify upgrades, supporting compliant and scalable HVAC automation. Application: Retrofit projects and new builds requiring scalable control.
Get a Quick Quote for a ABB 3ABD50000038996
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038996?
Enquire Now
FAQs
Installation begins with selecting the IP21 enclosure for standard environments or IP55 for harsher locations, followed by wall mounting and wiring to the HVAC equipment. Configure the HVAC-specific settings from the intuitive panel, then complete commissioning using the built-in help assistants. The process is streamlined by the drive's integrated controls and remote monitoring options.
The drive includes built-in control of fans, pumps and compressors, an HVAC-focused primary settings menu, and help assistants that simplify startup. Its energy-management features reduce draw and operational costs while maintaining performance. The system supports compatibility with HVAC equipment and is designed for rapid integration into air handling and chiller setups.
Yes. The ACH580-01-039A-4 offers optional Bluetooth capability for remote commissioning and monitoring. This enables technical teams to configure, calibrate, and monitor drive performance from a distance, reducing site visits and accelerating fault isolation, especially in multi-building campuses or hard-to-access installations.
The standard configuration uses an IP21 enclosure suitable for typical indoor HVAC rooms. For more demanding environments, an IP55 flange-mount option is available. This flexibility allows installation on walls or within equipment rooms while maintaining protection against dust and moisture in line with HVAC installation needs.
By reducing commissioning time, simplifying installation, and improving energy efficiency, the ACH580 delivers a favorable return on investment. Faster startup lowers labor costs, while precise control of fans, pumps and compressors reduces energy consumption and maintenance needs over the system’s life cycle.
