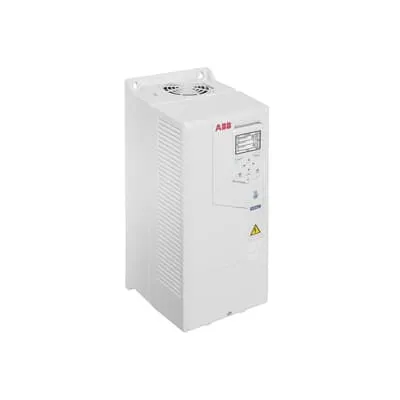

ABB ACH580-01-046A-4 Drive - IP21 Wall-Mounted
Part Number: 3ABD50000038997
Quick Summary
ABB ACH580-01-046A-4 Drive is a LV HVAC drive designed to control fans, pumps and compressors in HVAC systems. Installing and commissioning can be lengthy and error-prone; this drive reduces setup time with HVAC-specific primary settings and guided startup. Certifications include IP21 enclosure with IP55 and flange mounting options, plus CE compliance for European markets. Optional Bluetooth connectivity enables remote commissioning and monitoring, while the compact wall-mounted form factor supports space-constrained installations. With a 22 kW, 45 A rating, it delivers reliable HVAC control while helping reduce energy consumption and total cost of ownership. Designed to integrate with standard HVAC equipment and building management systems, it supports scalable deployments.
Product Information
Extended Description
3ABD50000038997 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features allow direct management of fans, pumps and compressors, reducing energy consumption and improving system responsiveness. This translates to measurable energy savings, lower utility bills, and extended equipment life in air handling units and chillers. Use cases span AHUs, rooftop units, and chilled-water circuits, where precise motor control translates into steadier pressure, quieter operation, and predictable performance. An intuitive control panel with HVAC-specific primary settings and guided startup assists speeds commissioning and reduces setup errors. Operators gain a clear, guided workflow from installation to tuning, helping ensure consistent performance. This is ideal for both new installations and retrofits in commercial buildings, industrial facilities, and data centers where HVAC reliability matters. Bluetooth connectivity enables commissioning and monitoring from a distance, eliminating site visits and enabling remote fault isolation, while IP21 with optional IP55 and flange mounting options give installation flexibility. The drive’s 22 kW, 45 A rating supports mid-scale HVAC loads like AHUs and pumps, with improved efficiency and motor protection. Designed for mission-critical operation, it offers diagnostics and protections that keep systems online and maintenance costs predictable.
Get a Quick Quote for a ABB 3ABD50000038997
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000038997?
Enquire Now
FAQs
Yes. The ACH580-01-046A-4 is a wall-mounted LV AC drive designed for HVAC loads such as fans, pumps and compressors. Its compact form factor fits mechanical rooms and retrofit projects, while the 22 kW, 45 A rating provides robust control for mid-scale HVAC systems.
Key specs include 22 kW output power, 45 A current rating, IP21 enclosure with optional IP55, and Bluetooth capability for remote commissioning. It is intended for LV AC motors in HVAC applications, offering precise voltage and speed control to optimize energy use.
IP21 is standard for indoor wall mounting, providing basic protection. An IP55 option adds enhanced dust and water ingress protection for more demanding installations, while flange mounting offers flexible orientation. Together they support reliable operation in mechanical rooms and retrofit sites with limited space.
The ACH580-01-046A-4 carries IP ratings (IP21 standard, IP55 optional) and CE compliance for European markets, reflecting safety and EMC standards. Bluetooth capability is available for remote commissioning, aligning with modern HVAC control and building management systems.
The drive reduces commissioning time and energy use, delivering a shorter payback period in HVAC projects. Built-in diagnostics and protection help minimize unplanned maintenance, while remote monitoring capabilities enable proactive service planning and faster fault isolation, improving system availability and total cost of ownership.
