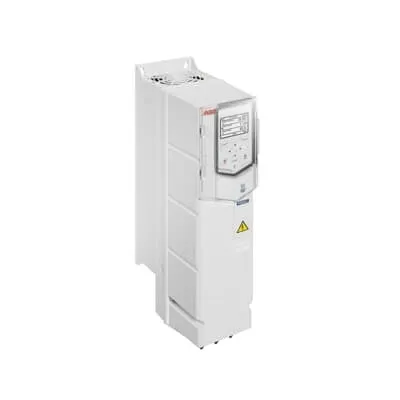

ABB 3ABD50000039010 LV AC wall-mounted drive - IP21
Part Number: 3ABD50000039010
Quick Summary
The ACH580 HVAC drive provides precise LV AC motor control for fans, pumps, and air handling units in commercial and industrial HVAC applications. Installers often contend with long commissioning times and complex parameter setups; this drive addresses that by incorporating an HVAC-specific primary settings menu and intuitive help assistants to streamline startup. It ships in a standard IP21 enclosure with the option for IP55 and flange mounting, offering installation flexibility across mechanical rooms and plant floors. Leveraging ABB’s robust control platform, the solution supports energy-efficient operation, quick deployment, and remote monitoring when enabled, delivering measurable ROI for facilities and procurement teams while maintaining system reliability.
Product Information
Extended Description
3ABD50000039010 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC-focused control features allow direct management of fans, pumps, and compressors. Business impact: Reduces installation time and commissioning effort, accelerating project timelines and lowering labor costs. Application: Ideal for air handling units and HVAC loops where coordinated speed control improves efficiency and reduces peak power draw. Feature: Intuitive control panel with HVAC primary settings menu and help assistants. Business impact: Faster startup, fewer configuration errors, and easier operator training. Application: New installations and retrofit projects in commercial buildings where downtime is critical. Feature: Optional Bluetooth capability for commissioning and monitoring from a distance. Business impact: Enables remote site assessment, reduces on-site visits, and supports proactive maintenance planning. Application: Remote facilities management and service operations across multiple sites. Feature: IP21 enclosure with IP55 and flange-mount options. Business impact: Enhances installation flexibility, suits varied plant layouts, and improves protection in harsher environments. Application: Wall-mounted installations in mechanical rooms, rooftops, or restricted spaces. Feature: Power and current compatibility (Pn 7.5 kW, 17 A) with IEC-based architecture. Business impact: Ensures seamless integration with mid-range HVAC motors, enabling reliable performance and energy savings. Application: Fans, pumps, and compressors within HVAC systems of commercial facilities. Note: Real-world deployments benefit from ABB diagnostics and built-in safety features, supporting predictive maintenance and reducing unplanned downtime.
Get a Quick Quote for a ABB 3ABD50000039010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039010?
Enquire Now
FAQs
Yes. The ACH580 HVAC drive is designed for wall-mounted installation with an IP21 enclosure as standard and an IP55 option available. It supports LV AC applications such as fans, pumps, and air handling units, providing compact integration in mechanical rooms or equipment spaces while maintaining easy access for servicing and commissioning.
The device is rated for 7.5 kW (Pn) and 17 A current at a typical HVAC operating voltage. It uses an IEC-based control architecture suitable for mid-range HVAC motors, enabling smooth soft-start, precise speed control, and energy-efficient operation across diverse HVAC loads.
Absolutely. The ACH580 is built to control fans, pumps, and compressors, including air-handling units and chillers. With HVAC-specific settings and remote capabilities, it delivers reliable performance, reduced energy consumption, and simplified commissioning for these critical loads in commercial and industrial environments.
The standard configuration provides an IP21 enclosure, with IP55 and flange mounting options to suit different installation environments. This supports compliant operation in typical HVAC applications, while maintaining accessibility for maintenance and diagnostics. Some deployments may also leverage integrated safety features and ABB’s commissioning tools for added assurance.
ROI is driven by shorter commissioning times, reduced wiring and setup effort, and energy savings from precise motor control. The optional Bluetooth enables remote commissioning and monitoring, decreasing on-site visits and enabling proactive maintenance. Collectively, these factors lower total cost of ownership while improving system reliability and uptime.
