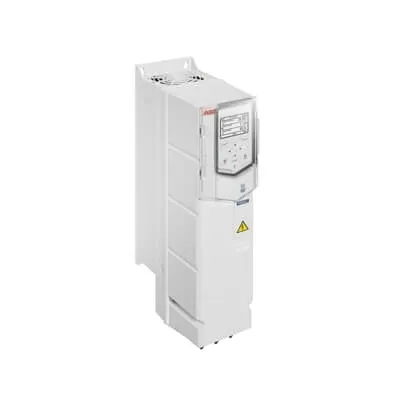

ABB ACH580-01-026A-4+B056 HVAC Wall-Mount Drive - IP21
Part Number: 3ABD50000039011
Quick Summary
ABB ACH580-01-026A-4+B056 HVAC wall-mounted drive controls fans, pumps and compressors in HVAC systems. Engineers often face lengthy commissioning and complex wiring when deploying variable-speed drives. It’s CE-certified with IP21 as standard and IP55 optional, enhancing safety, durability, and maintenance in building environments. Built-in HVAC-specific settings and optional Bluetooth streamline startup, enabling faster commissioning and reduced total ownership costs. Using this drive supports energy-efficient operation of fans, pumps and compressors, delivering measurable reductions in energy consumption and system wear. In facilities with air handling units, chillers and packaged rooftop systems, the ACH580 simplifies integration with existing control architectures.
Product Information
Extended Description
3ABD50000039011 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control functions streamline commissioning and reduce installation time for fans, pumps and compressors. This yields faster startup, fewer field configuration steps, and a lower risk of wiring errors, which is especially valuable in complex air handling units and chillers. The wall-mounted design saves space in mechanical rooms and simplifies service access, while IP21 protection helps with routine maintenance in typical indoor environments. For harsher environments, IP55 and flange mounting options extend protection against dust and water ingress, enabling outdoor or semi-exposed installations. Bluetooth commissioning capability allows remote setup, diagnostics and monitoring, reducing on-site visits and accelerating problem resolution. The 11 kW, 25 A rating supports reliable performance in medium-sized HVAC applications, contributing to energy savings and reduced wear on driven equipment. The ACH580 family compatibility ensures smooth integration with existing ABB control architectures and building management systems while maintaining CE compliance and safe operation.
Get a Quick Quote for a ABB 3ABD50000039011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039011?
Enquire Now
FAQs
The ACH580-01-026A-4+B056 is a low-voltage, wall-mounted HVAC drive that controls fans, pumps and compressors in air handling units, chillers and rooftop systems. It integrates HVAC-specific settings for streamlined commissioning and operation, making it ideal for mid-sized commercial and light-industrial HVAC installations.
Yes, the ACH580 is CE-certified, reflecting compliance with safety and EMC standards. By default it uses an IP21 enclosure, providing standard indoor protection; IP55 is available as an option for more demanding environments, expanding installation versatility and durability.
Yes. The ACH580 offers optional Bluetooth capabilities that enable remote commissioning and monitoring. This reduces site visits, speeds up startup, and allows technicians to adjust parameters and troubleshoot from distance, improving overall project timelines and minimizing on-site disruption.
The ACH580 is designed for fans, pumps and compressors in HVAC systems, including air handling units, chillers and packaged rooftop units. Its built-in HVAC-specific settings simplify integration with existing control architectures and facilitate coordinated operation with building management systems.
When wall-mounting the ACH580, ensure adequate clearances for heat dissipation and maintenance access, verify power and grounding requirements, and consider enclosure protection needs (IP21 standard, IP55 optional). Proper mounting and wiring reduce vibration issues and support reliable long-term operation in typical mechanical rooms.
