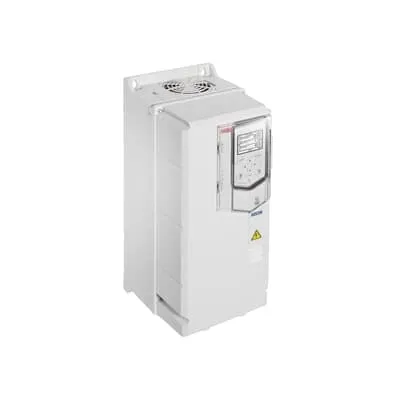

ABB 3ABD50000039012 HVAC drive - IP21
Part Number: 3ABD50000039012
Quick Summary
The ACH580 HVAC drive by ABB is a wall-mounted LV AC drive that precisely controls fans, pumps, and compressors in HVAC systems. Owners and engineers frequently struggle with long startup times, challenging commissioning, and on-site adjustments that drive up downtime and costs. Key certifications and protection include IP21 enclosure with IP55 flange options and CE-aligned expectations, supporting safe operation in demanding environments. Built-in HVAC functions and an intuitive primary settings menu shorten commissioning, while energy-management features help reduce operating costs over the life of the system. Secondary benefits include energy-efficient control, faster adherence to standards, and scalable integration with building-management systems.
Product Information
Extended Description
3ABD50000039012 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
The ACH580 HVAC drive offers built-in HVAC control that stabilizes startup and improves efficiency, reducing energy waste and downtime. This feature translates to measurable cost reductions and dependable operation for fans, pumps, and compressors in commercial buildings. The intuitive HVAC-specific control panel accelerates commissioning, enabling technicians to configure settings quickly and reliably for varied load profiles. Optional Bluetooth enables remote commissioning and monitoring, cutting service visits. The IP21 enclosure and available IP55 flange mounting provide installation flexibility for mechanical rooms, ceilings, or exterior walls, while maintaining protection for sensitive electronics. The 15 kW, 32 A rating supports common HVAC loads, and the compact wall-mounted form saves valuable panel space. Overall, the drive integrates with building-management systems, delivering scalable, compliant, and energy-efficient performance.
Get a Quick Quote for a ABB 3ABD50000039012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039012?
Enquire Now
FAQs
Install the ACH580 by mounting it on a suitable wall and wiring the three-phase supply to L1-L3 and the motor to U/V/W per the ABB installation guide. Use the HVAC-specific primary settings menu and built-in help assistants to configure fans, pumps, or compressors, which speeds commissioning. The IP21 protection is standard, with IP55 flange options for harsher environments, and motor voltage compatibility should be verified.
The ACH580 delivers precise speed control for HVAC loads through a 15 kW, 32 A rating, and built-in energy-management features that optimize motor speed and reduce consumption. The device supports smooth startup, reduces peak demand, and integrates with building controls for optimized fan, pump, and compressor operation. This translates to measurable energy savings and shorter project timelines.
Yes. The ACH580 is designed to control HVAC equipment including air handling units, fans, pumps, and chillers with its built-in HVAC control features and an intuitive settings menu. Its compact wall-mounted form, IP21 protection, and optional IP55 mounting support installation in mechanical rooms, ceilings, or equipment rooms while providing reliable speed control and energy optimization.
The ACH580 provides IP21 protection with IP55 flange options for tougher environments and is CE-compliant for European safety standards. It also supports remote setup via Bluetooth and ensures safe operation within HVAC system codes. These certifications help facilities meet regulatory requirements while delivering dependable performance in critical applications. From service doors to electrical rooms, this combination supports ongoing compliance.
ROI improves through energy savings from optimized motor control and reduced peak demand, while maintenance needs are minimized by robust design and built-in diagnostics. The drive supports remote monitoring, reducing on-site visits, and simple parameter backup speeds up replacements. Adopting ACH580 can shorten project timelines and lower life-cycle costs in modern HVAC deployments.
