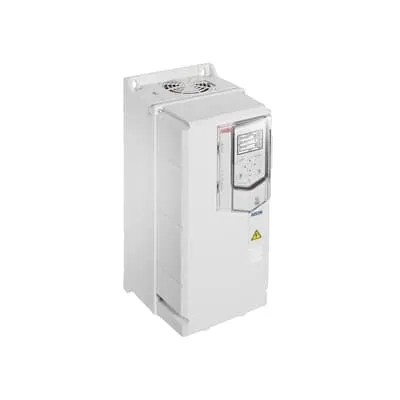

ABB 3ABD50000039013 Motors & Drives - ACH580 HVAC Drive IP21
Part Number: 3ABD50000039013
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted LV AC drive that precisely controls fans, pumps and compressors in HVAC systems. End users often struggle with lengthy commissioning and inconsistent startup without HVAC-specific controls. It carries CE marking and an IP21 enclosure, with IP55 flange-mount options for harsher environments. Built-in features, an HVAC-specific primary settings menu, and optional Bluetooth enable easy startup, commissioning, and remote monitoring, delivering energy-efficient operation and reliable performance for building services. For procurement teams, this translates to faster deployment, reduced on-site labor, and predictable energy savings across systems.
Product Information
Extended Description
3ABD50000039013 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control for fans, pumps, and compressors enables smooth, energy-efficient operation by modulating speed in response to demand. This reduces energy consumption, lowers motor wear, and improves system stability across transient loads. Applications include air-handling units, chillers, and packaged units where precise fan and pump control drives significant energy savings. Intuitive control panel with an HVAC-specific primary settings menu and help assistants speeds startup and commissioning. Operators benefit from guided configuration and reduced risk of mis-parameterization, which translates to shorter project timelines and fewer service calls. In practice, this supports faster project ROI in large building systems and industrial facilities. Optional Bluetooth capability enables commissioning and monitoring from a distance, minimizing on-site visits. Remote access supports proactive troubleshooting, fault detection, and faster fault resolution, contributing to operational continuity. This is particularly valuable for multi-building sites or challenging environments where accessing equipment is difficult. IP21 enclosure is the standard package, with IP55 and flange mounting options available for tougher environments and different installation layouts. This flexibility simplifies mounting on walls or within mechanical rooms and supports compliance with enclosure requirements in modern facilities. The combination of protection and modular mounting reduces installation risk and inventory footprint. Ease of installation and built-in features cut installation time and labor costs during commissioning and handover. By consolidating drive startup, parameterization, and basic control logic in one unit, contractors can deliver projects faster and with fewer errors. The net result is lower total cost of ownership and improved uptime for HVAC systems.
Get a Quick Quote for a ABB 3ABD50000039013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039013?
Enquire Now
FAQs
The ACH580 HVAC drive is designed for wall-mounted installation with an IP21 enclosure as standard, and IP55 mounting options available. Connect three-phase power aligned with 18.5 kW, 38 A ratings, and follow the included HVAC-specific startup routine to ensure proper parameterization. For multi-zone facilities, ensure clearance for heat dissipation and access to the optional Bluetooth module for remote monitoring.
Key specs include a power rating of 18.5 kW and a current rating of 38 A. The device is a 3-phase LV AC drive suitable for HVAC loads such as fans, pumps, and compressors. When selecting, verify supply voltage, motor type, and enclosure needs (IP21 standard, IP55 option) to match installation environment and protection requirements.
Yes, Bluetooth capability is available as an option. It enables remote commissioning, parameter adjustment, and monitoring without on-site visits, supporting faster start-up, proactive fault detection, and easier maintenance across distributed HVAC installations.
Ideal for air handling units, chillers, fans, pumps, and compressors, the ACH580 provides precise speed control, improved energy efficiency, and streamlined startup. This makes it well-suited for building services, data centers, and industrial HVAC systems seeking reduced energy use and reliable operation.
The drive features CE marking and an IP21 enclosure by default, with IP55 mounting options available. These certifications and protections satisfy regulatory and installation requirements for most commercial and industrial HVAC environments, while expanding deployment flexibility in harsher spaces.
