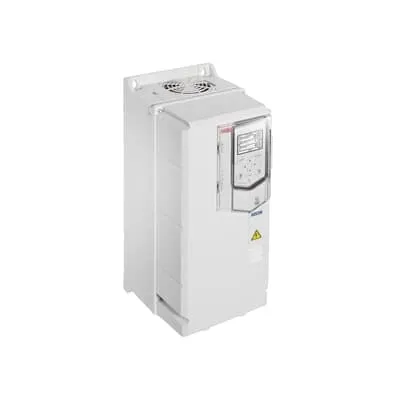

ABB ACH580-01-046A-4+B056 HVAC Drive - IP55 Enclosure
Part Number: 3ABD50000039014
Quick Summary
ABB ACH580-01-046A-4+B056 HVAC drive controls fans and pumps in building HVAC systems. This solution addresses the common pain point of lengthy commissioning and complex parameter tuning that can slow projects. CE-compliant with IP21 standard protection, and with IP55 and flange mounting options, it offers robust installation options for demanding environments. The built-in HVAC-focused features, along with an intuitive primary settings menu, help reduce startup time. By enabling remote commissioning via Bluetooth, this drive supports modern, connected facilities and delivers measurable energy-efficiency and operational reliability for commercial and industrial HVAC applications.
Product Information
Extended Description
3ABD50000039014 ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control functions. Business Impact: Simplifies control of fans, pumps and compressors, reducing commissioning time and ensuring stable operation in normal and mission-critical scenarios. Application: Ideal for air-handling units and chillers in commercial buildings, hospitals, and data centers. Long-tail keywords: HVAC drive integration, built-in control logic, energy-efficient HVAC equipment. Feature: Intuitive HVAC primary settings menu and help assistants. Business Impact: Lowers risk of misconfiguration and accelerates startup for engineers and contractors. Application: Quick parameter setup on new installations or retrofits in mid-size facilities. Long-tail keywords: HVAC drive startup, commissioning assistance, parameter guidance. Feature: Bluetooth capability for remote commissioning and monitoring. Business Impact: Eliminates on-site visits for routine checks, reduces maintenance costs, and supports remote diagnostics. Application: Field service and commissioning for large campuses or multi-building HVAC systems. Long-tail keywords: remote monitoring, Bluetooth HVAC drive, fleet commissioning. Feature: IP21 standard enclosure with IP55 and flange mounting options. Business Impact: Provides flexible mounting and protection levels to suit indoor wall installations or tougher environments. Application: Wall-mounted installation in equipment rooms, with optional higher protection for exposed areas. Long-tail keywords: IP55 option, wall-mounted drive, HVAC enclosure options. Feature: Energy efficiency and smart startup features. Business Impact: Improves overall system efficiency, lowers energy bills, and extends equipment life by optimizing motor control. Application: Pumps and fans in HVAC loops, with potential energy procurement savings. Long-tail keywords: energy-efficient motor control, HVAC energy savings, variable speed drive benefits.
Get a Quick Quote for a ABB 3ABD50000039014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039014?
Enquire Now
FAQs
The ACH580-01-046A-4+B056 is designed to drive HVAC equipment such as fans, pumps, and compressors up to 22 kW and 45 A. It integrates with standard motor types used in air handling units and chillers, enabling smooth speed control and stable operation across variable load profiles. Ensure motor nameplate ratings align with the drive output.
Install on a wall as standard, using the IP21 enclosure, with IP55 and flange mounting options available for harsher environments. Plan for remote commissioning via Bluetooth and ensure adequate ventilation. Verify electrical connections, cable routing, and sensor wiring per ABB guidelines to minimize commissioning time and avoid startup delays.
Yes, the ACH580-01-046A-4+B056 is CE-compliant, meeting European efficiency and safety requirements. It supports standard HVAC control practices and IP-rated enclosure configurations. For regulated facilities, confirm local electrical standards and installation codes, and document compliance during commissioning for audit readiness.
By delivering precise motor speed control and optimized ramping for fans and pumps, the ACH580 reduces part-load energy consumption and reduces electrical peak demand. The built-in HVAC features simplify startup, while remote monitoring enables proactive maintenance, contributing to lower lifecycle costs and improved system reliability in commercial buildings.
ROI comes from reduced commissioning time, lower faulty startups, and energy savings from optimized motor control. ABB provides installation guidance and remote commissioning support via Bluetooth, which minimizes field service visits. For ongoing maintenance, the drive’s diagnostic features help predict failures and plan preventive maintenance.
