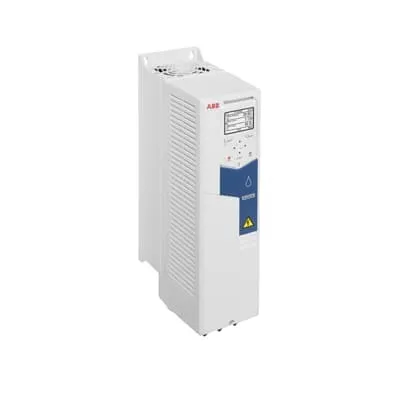

ABB ACQ580-01-018A-4 Wall-mounted LV Drive - IP21/IP55 Options
Part Number: 3ABD50000039027
Quick Summary
ACQ580-01 drives deliver energy-efficient pump control for water and wastewater applications. They enable precise flow management and reduced energy consumption in municipal and industrial pumping systems. Operators often face energy waste, pump wear, and downtime during startup and operation; this drive mitigates those risks with sensorless flow calculation, dry run protection, and quick ramp capabilities. The solution offers IP21 standard enclosure with IP55 and flange-mount variants, plus intuitive Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel. By visualizing energy savings through the built-in calculator, the system delivers measurable ROI while supporting compliant, reliable pump operations in demanding environments.
Product Information
Extended Description
3ABD50000039027 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in pump application features such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller cleaning solution reduce energy consumption, wear, and downtime in water and wastewater pumping applications. The business impact is lower operating costs and extended pump life, enabling municipalities and industrial facilities to meet throughput targets with predictable performance. Application-wise, these features support reliable, optimized pumping with fewer sensors and simplified maintenance workflows. Feature → Business Impact → Application: Intuitive control interfaces including the Hand-Off-Auto panel, Drive Composer PC tool, and an optional Bluetooth control panel accelerate commissioning, troubleshooting, and remote tuning, delivering faster project timelines and reduced field service costs. Feature → Business Impact → Application: Energy calculator visualization translates engineering gains into tangible savings, enabling data-driven procurement and ROI analysis for utility-scale pumping projects. Feature → Business Impact → Application: Enclosure versatility with IP21 standard and IP55 options saves space and simplifies installation on walls or through flange mounting, ideal for retrofit projects in constrained plant rooms. Feature → Business Impact → Application: Protective features such as dry-run protection and level control shield pumps from damage and dry-run conditions, lowering repair frequency and maintenance cycles in wastewater handling systems.
Get a Quick Quote for a ABB 3ABD50000039027
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039027?
Enquire Now
FAQs
Begin with selecting the IP21 standard enclosure (or IP55 option if required for harsher environments) and mount the unit on a suitable wall. Connect the 7.5 kW, 17 A motor, integrate the Hand-Off-Auto control panel, and configure Drive Composer via the PC tool. Use the Bluetooth option for remote commissioning if available. Ensure proper ventilation and electrical isolation during installation to meet safety standards.
Key features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller cleaning solution. These reduce energy use, extend pump life, minimize downtime, and simplify startup sequences, delivering reliable performance in municipal and industrial pumping systems.
Yes. The drive supports multipump control, enabling coordinated operation across multiple pumps to optimize flow, pressure, and energy use. This is ideal for water treatment, wastewater lift stations, and connected pumping networks where synchronized starts and stop logic improve overall efficiency and provide smoother system response during load changes.
The standard configuration uses an IP21 enclosure designed for wall mounting. For higher protection, IP55 variants and flange mounting units are available, allowing installation in more demanding environments and enabling flexible retrofits in compact plant rooms.
The built-in energy calculator visualizes expected energy savings from optimized pump operation, enabling engineers to quantify cost reductions and payback periods. This supports procurement decisions, justifies capital expenditure, and aligns with energy efficiency initiatives in water and wastewater projects.
