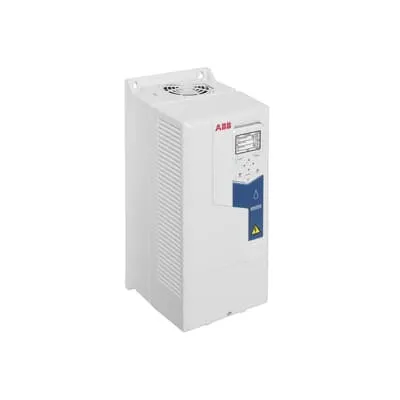

ABB ACQ580-01-039A-4 LV AC Wall-Mounted Drive - IP21 Enclosure Standard
Part Number: 3ABD50000039030
Quick Summary
ABB ACQ580-01-039A-4 LV AC wall-mounted drive for water and wastewater pumps delivers energy-efficient, precise control. This solution targets the common challenge of fluctuating demand and wasted energy in pumping stations by delivering sensorless flow calculation, multipump coordination, and level control within a compact wall-mount package. The drive features IP21 enclosure as standard, with IP55 and flange mounting options to suit harsher field environments, plus intuitive Hand-Off-Auto control, Drive Composer software, and optional Bluetooth control. The built-in energy calculator visualizes savings, supporting ROI justification and ongoing energy-management initiatives. Used across utilities and industrial water networks, it enables reliable operation, reduced maintenance, and faster deployment in new projects.
Product Information
Extended Description
3ABD50000039030 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation enables precise pump modulation without external flow meters, reducing hardware costs and maintenance. Business impact: lowers total cost of ownership while improving control accuracy; Application: ideal for variable-demand water and wastewater pumping where sensor reliability is a concern. Feature: Multipump control and level management synchronize multiple pumps for smooth transitions and reduced wear; Business impact: minimizes start-stop cycling and energy spikes; Application: lift stations and treatment-inlet points where multiple pumps share load. Feature: Dry-run protection and soft pipe-fill reduce mechanical stress and prevent pump damage, extending motor life and service intervals; Application: dry-run-prone installations and low-water scenarios. Feature: Built-in energy calculator and visible savings data support ROI calculations and ongoing energy-management initiatives; Application: performance tracking for utilities and process plants. Feature: Compact wall-mount design with IP21 standard and IP55 option simplifies installation and expands mounting flexibility; Application: retrofit projects and new builds with space constraints. Feature: Hand-Off-Auto, Drive Composer, and optional Bluetooth control panel streamline commissioning, monitoring, and maintenance; Application: field service and remote diagnostics in challenging environments.
Get a Quick Quote for a ABB 3ABD50000039030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039030?
Enquire Now
FAQs
For new installs or retrofit projects, plan for a compact wall-mounted footprint with IP21 enclosure as standard and IP55 option if harsher environments are present. Use the Hand-Off-Auto control for basic operation and Drive Composer for commissioning. Ensure compatible power supply, proper enclosure clearance, and available space for access panels to facilitate routine maintenance and future upgrades.
Sensorless flow calculation estimates real-time flow without external meters by analyzing motor current and pump dynamics, delivering accurate control of pump speed. Multipump control coordinates multiple pumps to balance load, reduce start/stop cycles, and optimize energy use. Together, these features improve efficiency and reliability in variable-demand water and wastewater applications.
This drive excels in pump stations, lift stations, and treatment-plant inflow/outflow stages where flow varies, energy costs are a concern, and reliable protection is required. Its level control, soft-fill ramps, and dry-run protection support stable operations in recirculation, filtration, and prime pumping scenarios, while the built-in energy calculator helps quantify savings.
The ACC580-01-039A-4 is designed with an IP21 enclosure standard and offers an IP55 option for higher protection against dust and moisture. It supports flange mounting variants and integrates with ABB’s control ecosystem, including Hand-Off-Auto and Drive Composer. Verify local regulatory requirements and CE conformity as applicable to your installation region.
ROI is driven by measurable energy savings from tighter flow control and reduced start-up energy, as shown by the built-in energy calculator. Maintenance impact includes lower sensor fatigue due to sensorless flow estimation, fewer leak-prone external meters, and extended motor life from dry-run protection and soft ramps. The result is lower operating costs and improved system reliability over time.
