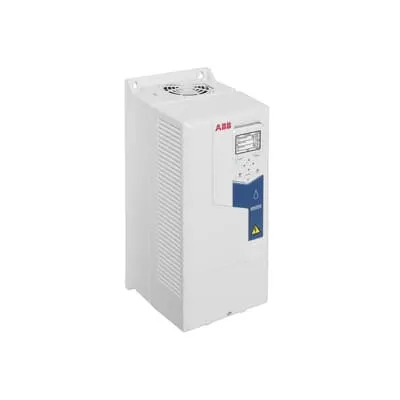

ABB 3ABD50000039031 AC Drive - IP21 Enclosure
Part Number: 3ABD50000039031
Quick Summary
ABB 3ABD50000039031 ACQ580-01 LV AC wall-mounted drive is a robust pump drive designed for water and wastewater applications. Operators often battle energy waste and unpredictable pump behavior; this drive mitigates those challenges through sensorless flow control, multi-pump sequencing, and protective features that optimize performance. The unit ships with a standard IP21 enclosure, with IP55 and flange-mount options available to match installation needs, and aligns with common CE safety expectations in many markets. By combining intuitive local control with a PC-based Drive Composer tool and an optional Bluetooth panel, it delivers faster setup, clearer diagnostics, and lower total cost of ownership for utilities and industrial facilities.
Product Information
Extended Description
3ABD50000039031 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control → Business Impact: Optimizes pump operation, reduces energy consumption, and extends pump life by preventing over- or under-pumping. Application: Municipal pumping stations and wastewater lift stations benefit from smoother flow and reduced wear. Long-tail keyword: sensorless flow calculation, multipump control, water wastewater pumping. Feature: Level control and dry run protection → Business Impact: Protects pumps and maintains process integrity, lowering maintenance costs and downtime. Application: Dry-run scenarios in sumps or tanks are mitigated, ensuring reliable service. Long-tail keyword: dry run protection for pumps, level control in pumping stations. Feature: Soft pipe fill and quick ramps → Business Impact: Minimizes inrush, reduces mechanical stress, and protects piping networks, shortening commissioning time. Application: New installations and retrofit projects in water systems. Long-tail keyword: soft pipe fill, quick ramps, pump start-up protection. Feature: Built-in energy calculator → Business Impact: Visualizes energy savings and supports ROI analysis for projects and regulatory reporting. Application: Utility-grade optimization and project justifications. Long-tail keyword: energy calculator for pumps, energy savings visualization. Feature: Operator interfaces and integration → Business Impact: Improves uptime and maintenance efficiency with Hand-Off-Auto, Drive Composer PC tool, and Bluetooth panel options. Application: Field service, remote diagnostics, and rapid commissioning. Long-tail keyword: Hand-Off-Auto control panel, Drive Composer integration, Bluetooth control panel.
Get a Quick Quote for a ABB 3ABD50000039031
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039031?
Enquire Now
FAQs
Begin with a suitable wall mounting surface and power supply that match the 22 kW, 45 A rating. Mount the unit securely, connect input power and motor leads per the wiring diagram, and attach any optional panels. Use Hand-Off-Auto for initial commissioning and Drive Composer for detailed configuration; verify IP21 enclosure and consider IP55 or flange options for harsher environments.
The drive provides a nominal 22 kW power rating with 45 A current capability. It is designed for LV AC pumping, features sensorless flow calculation, and supports multi-pump control, level control, dry run protection, soft pipe fill, and quick ramps. It includes an IP21 enclosure by default, with IP55 and flange mounting options available.
Yes. The ACQ580-01 variant is designed for multi-pump installations and level-control scenarios common in wastewater pumping. The built-in logic supports multi-pump sequencing and level sensing, enabling coordinated operation across several pumps while maintaining desired tank levels and reducing energy waste through optimized sequencing.
The standard enclosure is IP21, suitable for wall-mounted installations. Optional IP55 enclosures and flange-mount configurations are available for more demanding environments or space-constrained layouts, offering enhanced protection against dust, water ingress, and mechanical stress in outdoor or harsh plant areas.
The drive reduces energy consumption through sensorless flow control and optimized ramping, lowering operating costs. Protective features like dry run protection minimize pump failures, while quick commissioning and remote diagnostics via Drive Composer and Bluetooth panels shorten maintenance cycles and downtime, delivering a favorable return on investment when deployed in continuous pumping operations.
