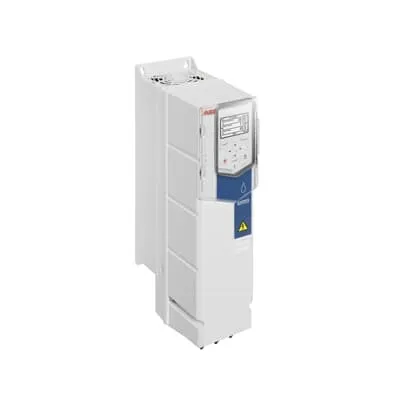

ABB 3ABD50000039044 ACQ580-01 drive - IP21
Part Number: 3ABD50000039044
Quick Summary
ABB ACQ580-01 drive is a low-voltage wall-mounted drive for water and wastewater pumping applications. Engineers often face energy waste, inconsistent flow, and downtime in municipal pumping stations, driving higher operating costs. The solution delivers CE marking with IP21 enclosure, and optional IP55 or flange-mount variants for installation flexibility. By integrating built-in pump features and intuitive controls, the ACQ580-01 translates device performance into measurable business value, delivering energy efficiency, reliable operation, and predictable maintenance cycles for water management projects.
Product Information
Extended Description
3ABD50000039044 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACQ580-01 includes sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller-cleaning solution. This combination reduces external sensing needs, minimizes pump wear, and cuts surge-related energy spikes, enabling efficient operation across municipal and industrial pumping stations. Application: ideal for water and wastewater pumping where precise level-based control and multi-pump coordination improve overall system reliability. Feature → Business Impact → Application: The built-in energy calculator visualizes true energy savings from optimized pump control, helping maintenance teams justify demand-side management investments and justify life-cycle costs. Application: useful for utility-grade pumping plants and treatment facilities seeking verifiable efficiency gains. Feature → Business Impact → Application: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel streamline commissioning, diagnostics, and remote management. This reduces on-site commissioning time and accelerates project timelines. Application: convenient for field technicians deploying new pump systems or retrofits. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange-mount options supports robust wall-mounted installation in variable environments, simplifying mounting in existing plant spaces. Application: suitable for narrow-control rooms, pump stations, and treatment plants requiring compact drives with flexible mounting. Feature → Business Impact → Application: Sensorless flow calculation, dry run protection, and quick ramping protect pumps from condition changes, reduce maintenance costs, and extend equipment life. Application: critical for dry climates or variable-speed pumping in water networks, minimizing downtime and service interruptions. Feature → Business Impact → Application: Compact form factor and intuitive control interfaces enable faster procurement-to-commissioning cycles, delivering lower total cost of ownership. Application: useful for procurement teams seeking standardized drives across multiple sites with consistent performance.
Get a Quick Quote for a ABB 3ABD50000039044
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039044?
Enquire Now
FAQs
The ACQ580-01 is designed for wall-mounted installation with an IP21 enclosure by default, with IP55 and flange-mount options available. Start with site preparation, mount the drive on a stable wall, connect power and motor leads per the ABB wiring diagram, then use the Drive Composer PC tool or Hand-Off-Auto panel for configuration. Ensure proper cooling and ventilation, and validate motor protection settings before commissioning.
The drive supports a 7.5 kW output with a rated current of approximately 17 A. It includes sensorless flow calculation, dry run protection, soft-start/soft ramps, and level control for pump applications. The IP21 enclosure is standard, with IP55 and flange options. CE certification is provided, and the unit is designed for reliable operation in water and wastewater pumping environments.
Yes, the ACQ580-01 offers multipump control designed to coordinate several pumps for charge/standby operation in wastewater facilities. Level control and quick ramp features optimize sequencing and reduce system stress. Control interfaces include a Hand-Off-Auto panel and the Drive Composer PC tool to configure and monitor multiple drives from a central point.
The product is CE-marked for compliance with applicable European directives. The standard enclosure is IP21, with available IP55 and flange-mount variants to meet more demanding environments. These ratings support reliable operation in water treatment and municipal pumping applications while easing installation and maintenance.
The built-in energy calculator helps quantify improvements from optimized flow control, reducing energy consumption across pump runs. Sensorless flow control and dry-run protection minimize wear and unscheduled maintenance, while quick ramps limit electrical inrush. Across sites, these features translate into lower operating costs, improved pump life, and faster project payback times.
