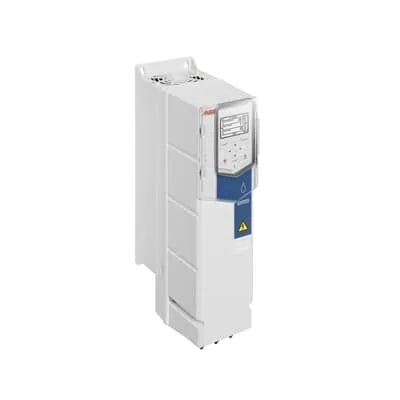

ABB 3ABD50000039045 Motors & Drives - IP21 Enclosure
Part Number: 3ABD50000039045
Quick Summary
ABB ACQ580-01 wall-mounted drive for water and wastewater delivers precise, energy-efficient pump control. Engineers often struggle with wasted energy, downtime, and complex integration when coordinating multiple pumps in treatment plants. This solution comes with IP21 protection by default and offers IP55 mounting options, while CE-compliant design supports rugged field use and regulatory alignment. With the built-in energy calculator, sensorless flow features, and a Hand-Off-Auto interface, it helps reduce operating costs and simplifies commissioning and maintenance for both new installations and retrofit projects.
Product Information
Extended Description
3ABD50000039045 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation → Business Impact: Eliminates the need for external flow meters and provides real-time flow visibility, reducing instrumentation costs and maintenance. Application: Water and wastewater pumping where flow varies; the approach improves process control and energy use. Feature: Multipump control → Business Impact: Optimizes pump sequencing to minimize peak demand and energy spikes, lowering electrical bills and extending pump life. Application: Stations with multiple pumps, common suction headers, or variable demand profiles. Feature: Level control and dry run protection → Business Impact: Prevents pump damage, reduces unplanned downtime, and lowers maintenance costs. Application: Lift stations, basins, and sludge handling where level fluctuations occur. Feature: Soft pipe fill and quick ramps → Business Impact: Reduces hydraulic transients and pressure surges, protecting pipes and fittings while smoothing starts. Application: New installations and retrofits with variable-speed operation. Feature: Built-in energy calculator and intuitive controls → Business Impact: Quantifies energy savings, justifies ROI, and supports continuous improvement initiatives. Application: Plant-wide energy optimization programs and commissioning efficiency. Feature: Drive Composer PC tool and Bluetooth option → Business Impact: Speeds setup, diagnostics, and remote monitoring, cutting commissioning time and on-site visits. Application: Retrofit projects, service operations, and remote installations.
Get a Quick Quote for a ABB 3ABD50000039045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039045?
Enquire Now
FAQs
The ACQ580-01 is designed as a compact wall-mounted LV drive with IP21 protection by default, suitable for indoor installation. Ensure a clean, dry ambient and proper cable routing to minimize interference. Optional IP55 flange-mount units are available for harsher environments. Use the Hand-Off-Auto control panel for commissioning and Drive Composer for configuration, with appropriate wiring to the motor and sensors.
Sensorless flow calculation estimates pump flow without external meters, enabling real-time flow awareness and adaptive speed control. This reduces energy consumption by smoothing variable flows, improves process stability, and lowers maintenance costs by reducing sensor hardware and calibration needs in dynamic water/wastewater networks.
Yes. The ACQ580-01 supports multipump control, enabling coordinated sequencing and soft starts across several pumps. This reduces peak electrical demand, minimizes hydraulic transients, and extends pump life. It is well suited for pumping stations, basins, and wastewater treatment stages where staged operation enhances reliability and efficiency.
The device adheres to CE-compatible design standards and provides IP21 protection as standard, with IP55 mounting options available for more rugged installations. The firmware and hardware are structured for reliable field operation in water/wastewater environments, supporting regulatory compliance and safe, long-term operation.
By combining sensorless flow, energy calculation, and optimized pump control, the drive delivers measurable energy savings and reduced downtime. The integrated tools shorten commissioning time and simplify maintenance, delivering accelerated payback in many water/wastewater installations, especially where multiple pumps or variable demand are present.
