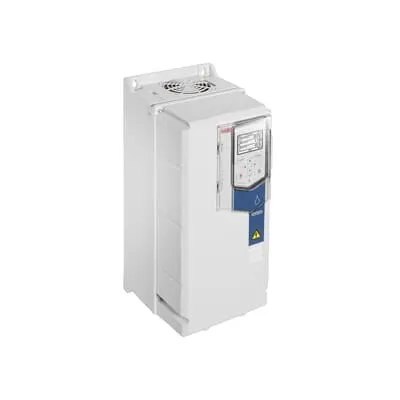

ABB 3ABD50000039048 Drive - IP21 Wall-Mounted Enclosure
Part Number: 3ABD50000039048
Quick Summary
ABB 3ABD50000039048 drive provides LV AC wall-mounted control for water and wastewater pumping. Operators often face energy waste, pump wear, and downtime—this drive tackles those with sensorless flow calculation, dry run protection, and rapid ramping. The solution ships with IP21 enclosure as standard, with optional IP55 and flange-mount variants, and is CE-compliant to meet global safety standards. When paired with Drive Composer and a Bluetooth control panel, it simplifies installation and unlocks measurable energy savings for utilities and process plants.
Product Information
Extended Description
3ABD50000039048 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application features including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business Impact: Improves process accuracy, reduces pump wear, and lowers energy waste. Application: Water and wastewater pumping where precise flow control and protection are critical. Feature: Quick ramps and intuitive hand control via Hand-Off-Auto plus Drive Composer and optional Bluetooth control panel. Business Impact: Speeds up commissioning, minimizes start-up surges, and enables remote diagnostics. Application: New installations and retrofit projects seeking faster time-to-value. Feature: Integrated energy calculator and reporting tools. Business Impact: Visualizes energy savings, supports regulatory compliance, and strengthens ROI justifications. Application: Utilities and industrial plants aiming to optimize running costs. Feature: Wall-mount compatibility with standard IP21 enclosure and IP55 option. Business Impact: Simplifies installation, reduces enclosure costs, and expands environmental suitability. Application: Indoor or sheltered spaces with varying protection needs. Feature: Reliability features including dry run protection and sensorless control. Business Impact: Increases equipment uptime, reduces maintenance, and extends pump life. Application: Critical pumping duties in water treatment and wastewater transfer.
Get a Quick Quote for a ABB 3ABD50000039048
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD50000039048?
Enquire Now
FAQs
The ABB 3ABD50000039048 drive provides LV AC wall-mounted motor control tailored for water and wastewater pumping, combining precise flow management with pump protection features to improve efficiency and reliability in municipal and industrial applications.
Key features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramping, and an energy calculator. These elements translate into reduced wear, better system responsiveness, and measurable energy savings.
Yes, the standard enclosure is IP21 with optional IP55. It is designed for wall mounting, and additional flange mounting options are available to fit varying installation constraints and environmental requirements.
The drive is CE-compliant and provides IP-rated protection (standard IP21, with IP55 options). These protections support safe operation in water and wastewater environments while meeting regulatory expectations.
By reducing energy waste through optimized pump control and lowering downtime with protective features, the drive offers improved ROI. The built-in energy calculator helps quantify savings, while remote diagnostics via Drive Composer and Bluetooth support streamline maintenance.
