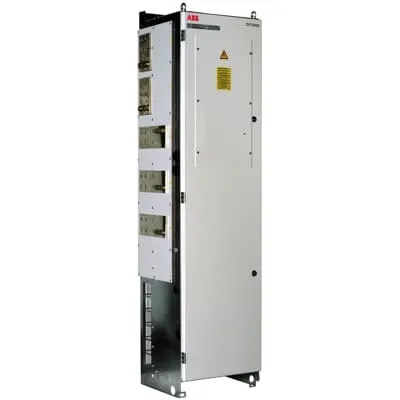

ABB 3ADT218042S0143 DC Converter Module - 600 VAC
Part Number: 3ADT218042S0143
Quick Summary
ABB 3ADT218042S0143 DC Converter enables high-current DC conversion for heavy-duty drive systems in industrial automation. This 2Q converter is designed to support 600 VAC networks and up to 3000 A, making it ideal for large motor drives and DC link applications. Engineers often face scalability and reliability challenges when expanding power capacity; this module addresses those needs with robust construction and straightforward integration. The unit complies with IEC 60529 IP00 protection, IEC 60947-1 standards, and EN 60529 guidelines, providing predictable performance in harsh plant environments. By leveraging this module, firms can reduce wiring complexity, shorten commissioning times, and improve power quality management, driving uptime and lowering total cost of ownership in power electronics deployments.
Product Information
Extended Description
3ADT218042S0143 ABB: DC Converter;
Type: DCS880-S01-3000-06;
2Q Converter;
Voltage: 600 VAC;
Current: 3000 A;
Weight: 180kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-3000-06;
2Q Converter;
Voltage: 600 VAC;
Current: 3000 A;
Weight: 180kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
180 kg
Product Net Depth / Length
410 mm
Product Net Height
1760 mm
Product Net Width
460 mm
Package Level 1 Depth / Length
450 mm
Package Level 1 Height
565 mm
Package Level 1 Width
1945 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
75 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H7
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
High-current capability drives fewer parallel components and reduces wiring complexity, enabling a more compact DC bus solution with lower installation costs. This translates to measurable efficiency gains and improved reliability in heavy-duty industrial drives where 600 VAC and 3000 A are required. The 2Q converter architecture supports bidirectional operation, enabling regenerative braking and dynamic energy flow control in motor drive applications, which lowers energy losses and extends equipment life. The robust 180 kg enclosure and 410 x 460 mm footprint allow for stable mounting in large cabinets, simplifying installation in existing facilities and reducing retrofitting time. With protection rated to IP00 and compliance with IEC 60529, 60947-1, and EN standards, integration into safety-conscious environments is straightforward, supporting maintenance planning and reducing risk. Industry-specific insights show that users benefit from better fault diagnosis through clear spec visibility and predictable lead times of 35 days, aiding project scheduling and procurement accuracy. The module’s dimensions and weight are optimized for dedicated enclosure spaces, while the 50/60 Hz compatibility ensures smooth operation across global facilities, supporting international deployment and scalable automation strategies.
Get a Quick Quote for a ABB 3ADT218042S0143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218042S0143?
Enquire Now
FAQs
This module has a product net footprint of 410 mm x 460 mm with a height of 1760 mm and a weight of 180 kg, designed for dedicated cabinet mounting in industrial environments. Use a sturdy 19-inch enclosure or a custom cabinet with adequate ventilation and access for service. Plan for two-person handling during installation due to the unit’s mass, and provide proper cable management to support the 600 VAC, 3000 A connections.
Key specs include a 2Q converter topology rated for 600 VAC and 3000 A, with a nominal frequency range of 50/60 Hz. It is designed for heavy-duty DC links and motor drive applications, with a product name DCS880 DC Converter Module. Analog I/O consists of 3 inputs and 2 outputs to support control and monitoring in industrial automation systems.
Yes. The 3ADT218042S0143 is purpose-built for high-current DC power applications in industrial drive systems. It supports heavy DC links, regenerative energy flow, and robust power conversion for large motors, making it suitable for applications like rolling mills, cranes, and heavy conveyor drives where 600 VAC operation and high current are required.
The module complies with IEC 60529 and EN 60529 IP00 protection, and IEC 60947-1 standards for electrical equipment in control cabinets. It is designed for industrial environments requiring reliable electrical performance and documented protection levels, helping with regulatory compliance and safe integration into existing control systems.
Warranty terms indicate that products under warranty must be returned if faults occur. The 3ADT218042S0143 offers long service life in demanding applications, reducing downtime and maintenance costs when integrated with proper cooling and enclosure design. The unit’s high current rating and reduced need for parallel components contribute to a favorable total cost of ownership in large-scale automation projects.
