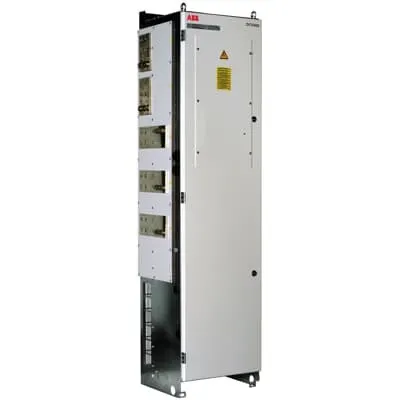

ABB 3ADT218042S0144 DC Converter Module - IP00 Protection
Part Number: 3ADT218042S0144
Quick Summary
ABB 3ADT218042S0144 DC converter module is a high-current solution for demanding industrial drives. In day-to-day projects, engineers face space constraints, long lead times, and integration complexity when deploying large DC converters. This module provides IP00 protection per IEC 60529 and is designed to operate reliably in typical factory humidity and vibration environments, with compatibility for 50/60 Hz power systems. The DCS880-based architecture supports scalable capacity and predictable maintenance, enabling procurement teams to optimize inventory and uptime. For power-electronics teams, this solution integrates smoothly with ABB control ecosystems and a broad accessory catalog, delivering meaningful efficiency gains and a favorable total cost of ownership.
Product Information
Extended Description
3ADT218042S0144 ABB: DC Converter;
Type: DCS880-S01-3000-07;
2Q Converter;
Voltage: 690 VAC;
Current: 3000 A;
Weight: 180kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-3000-07;
2Q Converter;
Voltage: 690 VAC;
Current: 3000 A;
Weight: 180kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
180 kg
Product Net Depth / Length
410 mm
Product Net Height
1760 mm
Product Net Width
460 mm
Package Level 1 Depth / Length
450 mm
Package Level 1 Height
565 mm
Package Level 1 Width
1945 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
75 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H7
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → 690 VAC input with a 3000 A current rating delivers high-power DC conversion for large motors and servo drives, reducing voltage drop and improving system stability → Application: Ideal for heavy industrial drives and DC bus applications in manufacturing plants. Feature → 2Q converter topology in a compact 180 kg chassis provides robust performance under demanding conditions → Application: Suitable for integration in centralized DC bus architectures and high-current power distribution. Feature → IP00 protection level under IEC 60529 / EN 60529 standards clearly defines installation boundaries and exposure limits → Application: Best suited for controlled indoor environments such as switchgear rooms and factory floors, not outdoor exposure. Feature → 3 analog inputs and 2 analog outputs enable flexible control system integration and real-time feedback → Application: Seamless interfacing with plant PLCs and ABB control modules for closed-loop control. Feature → DCS880-S01-3000-07 type designation with 690 VAC/3 kA rating and 50/60 Hz compatibility supports global deployments → Application: Ready-to-use in multinational facilities with standardized power architectures. Feature → Stocked at DEAPREXPU and SGIND002EXPU with a 35 day lead time and a minimal order quantity of 1 piece, supporting supply chain predictability → Application: Simplifies procurement planning and reduces work-in-progress in maintenance cycles.
