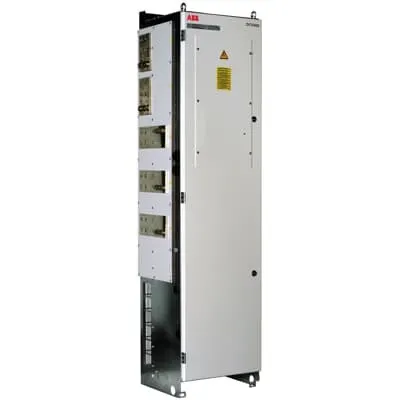

ABB 3ADT218042S0215 DC Converter - 800 VAC /1900 A (IP00)
Part Number: 3ADT218042S0215
Quick Summary
ABB 3ADT218042S0215 is a high‑current DC converter module designed for heavy‑duty industrial power systems and large motor drives. It handles 800 VAC input and delivers up to 1900 A in a compact 110 kg package, optimized for 4Q converter operation. Engineers often wrestle with bulky, power‑hungry converters that complicate cooling and maintenance; this module pairs robust ABB reliability with a scalable footprint to minimize downtime and lifecycle costs. The unit complies with IEC 60529/IP00 protection and IEC 60947‑1 compatibility, providing safe operation in harsh factory environments. When integrated with the DCS880 control ecosystem, it delivers predictable performance, easier commissioning, and a clear path to digital optimization in high‑demand lines like packaging, metals, and conveyors.
Product Information
Extended Description
3ADT218042S0215 ABB: DC Converter;
Type: DCS880-S02-1900-08;
4Q Converter;
Voltage: 800 VAC;
Current: 1900 A;
Weight: 110kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-1900-08;
4Q Converter;
Voltage: 800 VAC;
Current: 1900 A;
Weight: 110kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
110 kg
Product Net Depth / Length
410 mm
Product Net Height
944 mm
Product Net Width
510 mm
Package Level 1 Depth / Length
450 mm
Package Level 1 Height
565 mm
Package Level 1 Width
1945 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
75 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H7
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
High-current capability: The module provides 1900 A at 800 VAC, enabling direct powering of large motor drives and servo systems, reducing the need for external rectifiers and ancillary equipment. Business impact includes a smaller overall footprint and lower installation costs, with applications in heavy conveyors and metal forming. Installation with ABB reliability improves uptime and simplifies service intervals. 4Q converter topology: With four‑quadrant operation, regenerative braking is supported and precise motor control is achievable, reducing energy waste and improving braking performance. This translates to lower energy costs and safer, smoother drive behavior in rolling mills, extrusion lines, and heavy material handling. Robust protection and rugged design: IP00 protection per IEC 60529/EN 60529 ensures safe cabinet integration in controlled environments, while the durable chassis and 110 kg weight support stable operation in high‑vibration settings. This reduces enclosure cooling requirements and minimizes field failures in machining and stamping plants. Mechanical footprint and mounting: Dimensions of 410 mm (L) x 510 mm (W) x 944 mm (H) and a weight of 110 kg enable reliable rack mounting in standard industrial enclosures and headers. The solid form factor simplifies integration with DCS880 controllers and standard cable trays, accelerating project timelines. Control integration and I/O: With 3 analog inputs and 2 outputs, plus a frame size of H7, this module integrates smoothly with ABB’s control software for synchronized drive control, diagnostics, and remote monitoring. Compatibility with 50/60 Hz systems supports regional electrical standards and reduces reconfiguration costs. Availability and warranty considerations: Stocked at DEAPREXPU and SGIND002EXPU warehouses with a 35‑day lead time, the unit ships with a warranty framework that supports returns for warranty assessments, helping protect your ROI in new installations and expansions.
Get a Quick Quote for a ABB 3ADT218042S0215
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218042S0215?
Enquire Now
FAQs
Installation requires mounting in a standard industrial enclosure with adequate clearance for cooling and wiring. Connect the 800 VAC input to the module’s power terminals and wire the 3 analog inputs and 2 outputs to the DCS880 control interface. Verify IP00 protection suitability for the cabinet environment and ensure the unit’s 410 x 510 x 944 mm footprint fits your rack. Account for the 110 kg weight during handling and use appropriate lifting equipment. Follow ABB installation guidelines for safe commissioning and enable 50/60 Hz operation support.
The module operates at 800 VAC input with a current rating of 1900 A. It supports 50 Hz and 60 Hz systems, features a 4Q converter topology, and includes 3 analog inputs and 2 analog outputs. The frame size is H7, and the device weighs 110 kg. Protection is IP00, with EN/IEC compliance referenced for safety in industrial environments.
Yes. The 800 VAC, 1900 A capability and 4Q converter topology make it suitable for large motor drives and servo systems found in automotive stamping, packaging lines, and material handling. Its ABB heritage supports long‑term reliability, while the 110 kg rugged chassis and IP00 protection simplify cabinet integration and maintenance in demanding production environments.
The module adheres to IEC 60529/IP00 protection and IEC 60947‑1, EN 60529 standards for safe operation within industrial cabinets. It is designed for integration with standard ABB control ecosystems (DCS880). While licensing specifics may vary by region, the product aligns with common industrial safety and electrical standards relevant to high‑current DC converters.
Lead time is listed at 35 days, with stock available at DEAPREXPU and SGIND002EXPU warehouses. Warranty terms indicate that products under warranty must be returned for assessment. This structure supports project planning and ensures repair or replacement processes align with maintenance and ROI goals in new installations or expansions.
