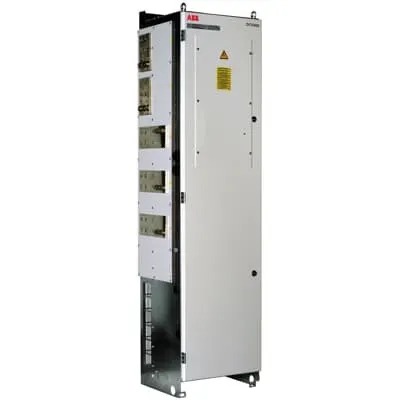

ABB 3ADT218042S0244 DC Converter Module - 690 VAC, 3000 A, IP00
Part Number: 3ADT218042S0244
Quick Summary
ABB 3ADT218042S0244 DC Converter Module is designed for high-current power conversion in industrial drives and power electronics. This 4Q converter supports 690 VAC and up to 3000 A, enabling reliable DC bus operation for large motor drives. The main challenge in heavy power systems is installation complexity and long lead times; this unit offers a compact footprint and straightforward mounting to reduce integration risk. It complies with IEC 60529/IP00 protection and IEC 60947-1 safety standards, reinforcing reliability in harsh environments. With 50/60 Hz compatibility and a wide operating humidity range, it maintains performance across diverse plant conditions. In ABB’s ecosystem, this module provides scalable power conversion with predictable maintenance, helping engineers meet uptime targets and reduce total cost of ownership.
Product Information
Extended Description
3ADT218042S0244 ABB: DC Converter;
Type: DCS880-S02-3000-07;
4Q Converter;
Voltage: 690 VAC;
Current: 3000 A;
Weight: 180kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-3000-07;
4Q Converter;
Voltage: 690 VAC;
Current: 3000 A;
Weight: 180kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
180 kg
Product Net Depth / Length
410 mm
Product Net Height
1760 mm
Product Net Width
460 mm
Package Level 1 Depth / Length
450 mm
Package Level 1 Height
565 mm
Package Level 1 Width
1945 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
75 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H7
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → High-current DC conversion at 690 VAC up to 3000 A. Business Impact → Enables robust DC bus operation for large motor drives and reduces system complexity by consolidating power stages. Application → Ideal for high-power motor drives and power-electronics-intensive applications. Feature → 4Q converter design. Business Impact → Expands control strategies and improves dynamic response for bidirectional power flow. Application → Suitable for DC bus systems and static converters in heavy industry settings. Feature → Degree of protection IP00 with IEC 60529/IEC 60947-1 compliance. Business Impact → Enhances reliability in factory environments and simplifies regulatory alignment. Application → Industrial automation panels and rugged control cabinets. Feature → 3 analog inputs and 2 analog outputs. Business Impact → Facilitates flexible drive control, monitoring, and integration with existing ABB control ecosystems. Application → Drive supervision, feedback, and parameter tuning in large-scale installations. Feature → Concrete physical footprint (410 mm depth, 460 mm width, 1760 mm height) and weight (180 kg). Business Impact → Improves planning accuracy for installation, rigging, and space allocation; supports robust mounting strategies. Application → Panel design, room layout, and installation sequencing in manufacturing plants.
