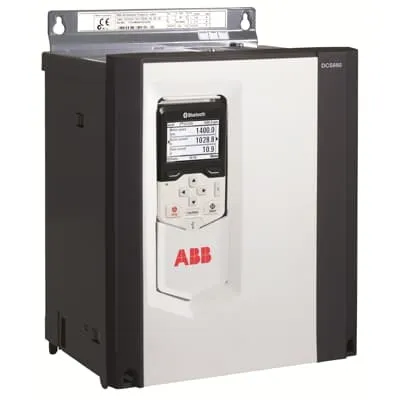

ABB 3ADT218518S0211 DC Converter Module - 400 VAC IP00
Part Number: 3ADT218518S0211
Quick Summary
ABB 3ADT218518S0211 DC Converter Module is a four-quadrant DC power converter designed for ABB DCS880 drives and automation systems. It provides reliable 400 VAC input and up to 25 A continuous output for precise motor control in demanding industrial environments. Engineers often face integration delays, enclosure constraints, and variable supply chain footprint; this module mitigates those risks with a compact 216 x 370 x 270 mm footprint and an 11 kg weight. The device carries an IP00 protection rating and adheres to IEC/EN 60529 standards, clarifying installation requirements in controlled areas. With 3 analog inputs and 2 analog outputs, it streamlines signal interfacing and diagnostics, supporting faster commissioning and improved control loop performance for automation projects.
Product Information
Extended Description
3ADT218518S0211 ABB: DC Converter;
Type: DCS880-S02-0025-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0025 A;
Weight: 11kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0025-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0025 A;
Weight: 11kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
11 kg
Product Net Depth / Length
216 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H1
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: 400 VAC input and 25 A continuous output align with high-power DC bus requirements, delivering a compact footprint at 216 x 370 x 270 mm. Business impact: higher power density reduces cabinet size and wiring complexity, cutting installation time and labor costs in industrial facilities. Application: motor drives, automated material handling, and assembly lines that demand reliable DC conversion without oversized enclosures. Feature: Four-quadrant (4Q) converter capability enables bidirectional power flow and regenerative braking, enhancing energy efficiency and motor control dynamics. Business impact: energy recovery minimizes heat load and operational energy consumption, improving overall drive performance in conveyor systems and robotics. Application: factory automation where dynamic braking and energy regeneration are required. Feature: 50/60 Hz compatibility and ABB DCS880 ecosystem integration support seamless worldwide deployment and consistent performance. Business impact: reduces engineering risk when configuring multi-site installations and ensures stable drive synchronization across facilities. Application: global manufacturing lines and mixed-voltage installations seeking reliable power conditioning. Feature: 3 analog inputs and 2 analog outputs simplify control loops and real-time monitoring, enabling proactive maintenance and faster fault diagnosis. Business impact: improved process visibility, reduced downtime, and more predictable production cycles in automation projects. Application: PLC-to-drive interfacing, sensor networks, and feedback control schemes. Feature: IP00 protection with IEC/EN 60529 alignment defines safe usage boundaries while encouraging appropriate enclosure strategy. Business impact: clear installation guidance minimizes enclosure decisions and supports regulated environments. Application: exposed-panel installations in controlled rooms with proper housing. Feature: Compact weight (11 kg) and modular dimensions support easy handling on site and plug-in replacement, reducing maintenance overhead. Business impact: lower installation risk and faster maintenance turnarounds, boosting overall equipment efficiency. Application: field deployment in motor control centers and automation cabinets.
Get a Quick Quote for a ABB 3ADT218518S0211
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218518S0211?
Enquire Now
FAQs
Plan for a compliant enclosure and a 400 VAC supply. Verify the 216 mm x 370 mm x 270 mm footprint fits the panel space, and orient the device for IP00 usage with appropriate enclosure protection. Connect to the DCS880 control platform, configure the 3 analog inputs and 2 analog outputs, and validate 50/60 Hz operation before commissioning.
Key specs include 400 VAC input, 25 A maximum current, 50/60 Hz compatibility, 3 analog inputs, 2 analog outputs, and a weight of 11 kg with product net dimensions of 216 x 370 x 270 mm. The unit features IP00 protection and operates within a controlled humidity range (5–95% RH).
Yes. The four-quadrant (4Q) converter supports bidirectional power flow, enabling regenerative energy return and dynamic braking in motor drives. It is well-suited for automated lines, conveyors, and robotics where energy efficiency and precise motor control are priorities.
The module carries an IP00 protection rating in line with IEC 60529/ EN 60529 standards, indicating suitability for controlled environments with appropriate enclosure. It is designed for active supply chains and regional availability from multiple suppliers, as reflected in its origin data (Poland and Germany).
With 35-day lead times from DEAPR and SGIND002 warehouses, plan procurement to minimize downtime. The compact form factor and integrated analog I/O help shorten commissioning, while the 11 kg weight eases on-site handling. Active stock and robust performance translate to reduced maintenance costs and improved asset uptime.
