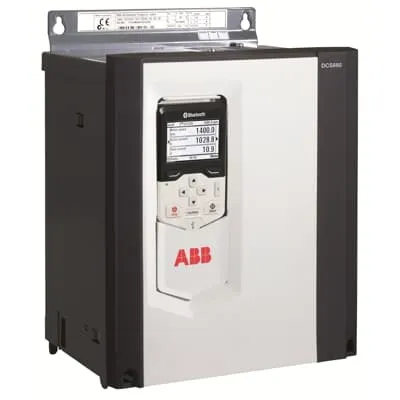

ABB 3ADT218518S0231 DC Converter Module - 400 VAC 75 A
Part Number: 3ADT218518S0231
Quick Summary
ABB 3ADT218518S0231 DC Converter enables robust DC power conversion for ABB DCS880-based drive systems. This module handles 400 VAC input and delivers up to 75 A, making it ideal for demanding motor control and power stage applications. For engineers, the challenge is achieving reliable performance under varying loads while simplifying integration with existing control architectures. The design aligns with IEC 60529, EN 60529 IP00 protection, and IEC 60947-1 standards, ensuring safety and compliance in harsh plant environments. In addition to reliability, the unit offers a compact footprint and straightforward installation, helping minimize downtime and lower total cost of ownership in automation projects.
Product Information
Extended Description
3ADT218518S0231 ABB: DC Converter;
Type: DCS880-S02-0075-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0075 A;
Weight: 11kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S02-0075-04;
4Q Converter;
Voltage: 400 VAC;
Current: 0075 A;
Weight: 11kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
11 kg
Product Net Depth / Length
216 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H1
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: 4Q converter topology with 3 analog inputs and 2 analog outputs enables multi-channel feedback and precise control loops. Business Impact: reduces external DACs/ADCs and simplifies wiring, accelerating setup and reducing cabinet wiring costs. Application: motor drives and process automation where reliable signal conditioning and flexible control are required. Feature: 400 VAC input and 75 A current rating deliver robust power handling for mid-to-high power automation tasks. Business Impact: enhances drive performance and reduces heat load on downstream power stages, improving overall equipment efficiency. Application: ABB DCS880-based control systems in conveyors, mixers, and pumps with demanding load profiles. Feature: IP00 protection and IEC 60529/ EN 60529 compliance provide safe operation in standard industrial environments. Business Impact: lowers safety risks and eases regulatory adherence across plant floors. Application: cabinets and production lines where basic protection is acceptable. Feature: 50/60 Hz compatibility and compact H1 frame size support versatile installation. Business Impact: simplifies integration across global sites with varied electrical grids, reducing design changes. Application: international manufacturing facilities seeking a single DC converter platform. Feature: 11 kg weight and detailed dimensions (216 mm L × 270 mm W × 370 mm H) facilitate planning and bolting in existing enclosures. Business Impact: minimizes layout surprises and speeds on-site installation. Application: retrofit projects and new builds with tight space constraints. The excerpted supplier data shows multiple stock points and favorable lead times, enhancing supply chain resilience for industrial automation projects that require quick availability and predictable delivery.
Get a Quick Quote for a ABB 3ADT218518S0231
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ADT218518S0231?
Enquire Now
FAQs
Yes. The 3ADT218518S0231 is a DC Converter Module designed for ABB DCS880 drive systems. It requires a 400 VAC input, supports up to 75 A continuous current, and offers 3 analog inputs and 2 analog outputs for multi-channel control. Its 11 kg weight and 216×270×370 mm dimensions simplify mounting and integration within standard automation cabinets.
Key specs include a 4Q converter topology, 400 VAC input, 75 A current, 3 analog inputs and 2 analog outputs, 50/60 Hz operation, and IP00 protection. The module weighs 11 kg and uses a frame size H1. It is designed for reliable operation across typical factory humidity ranges (5–95% RH) and standard industrial environments.
The 3ADT218518S0231 supports 50/60 Hz operation, making it suitable for facilities with different electrical grids. With 75 A current capability and 400 VAC input, it is well-suited for mid-to-high power motor drive tasks within ABB DCS880 configurations. Ensure enclosure cooling and ventilation are adequate to maintain IP00 protection in the intended installation space.
The unit adheres to IEC 60529 and EN 60529 (IP00) protection guidelines, along with IEC 60947-1 for electrical equipment safety. Origin information lists Poland (PL) and Germany (DE) as supplier sources, with multiple stocking options to support regional procurement and compliance requirements in global manufacturing sites.
Warranty terms specify that warranty returns apply if products exhibit defects during the warranty period, ensuring protection against early failures. ROI benefits come from improved drive reliability, reduced wiring complexity, faster installation, and lower downtime—key factors for automation uptime, predictable maintenance costs, and total cost of ownership improvements in production lines.
