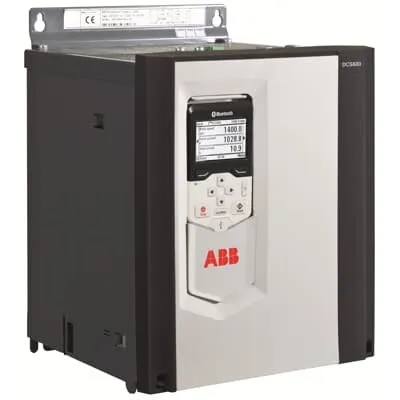

ABB 3ADT218519S0111 DC Converter Module - 400 VAC 135 A IP00
Part Number: 3ADT218519S0111
Quick Summary
ABB 3ADT218519S0111 DC Converter Module enables robust DC power conditioning for DCS880-driven automation systems and industrial drives. When downtime or procurement delays threaten project timelines, reliable sourcing and precise specifications matter, and this module delivers clear documentation and consistent performance. The unit complies with IEC 60529 IP00, EN 60529, and IEC 60947-1, ensuring safe integration into standard industrial architectures. With stock options at DEAPREXPU and SGIND002EXPU and a transparent lead time of 35 days, or immediate availability where listed, you gain predictable procurement alongside a compact 16 kg footprint that fits easily into crowded control cabinets.
Product Information
Extended Description
3ADT218519S0111 ABB: DC Converter;
Type: DCS880-S01-0135-04;
2Q Converter;
Voltage: 400 VAC;
Current: 0135 A;
Weight: 16kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-0135-04;
2Q Converter;
Voltage: 400 VAC;
Current: 0135 A;
Weight: 16kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
16 kg
Product Net Depth / Length
271 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H2
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature: 400 VAC input and two-quadrant (2Q) DC conversion. Business Impact: Enables bidirectional power flow for motor drives and regenerative loads, improving energy efficiency and control fidelity. Application: Ideal for DCS880 DC converter module configurations in precision automation and process equipment. Feature: 3 analog inputs and 2 outputs. Business Impact: Enhances control loops, feedback accuracy, and external signaling, reducing process variability. Application: Connects directly to PLC/drive interfaces within ABB automation platforms. Feature: Frame Size H2 with 16 kg weight and compact footprint (271 mm x 370 mm x 270 mm). Business Impact: Simplifies cabinet layout, reduces integration effort, and lowers installation time. Application: Suitable for standard control cabinets in industrial facilities. Feature: IP00 protection with operating humidity range 5–95% RH. Business Impact: Delivers reliable indoor performance in typical manufacturing environments while simplifying safety compliance. Application: Indoor automation and drive conditioning for DCS880 and similar systems. Feature: Stocked availability and defined lead times (35 days) with regional footprints (Poland and Germany). Business Impact: Improves procurement predictability, reduces project risk, and shortens time-to-commission. Application: Supports multi-site deployments and global supply chains for industrial automation.
