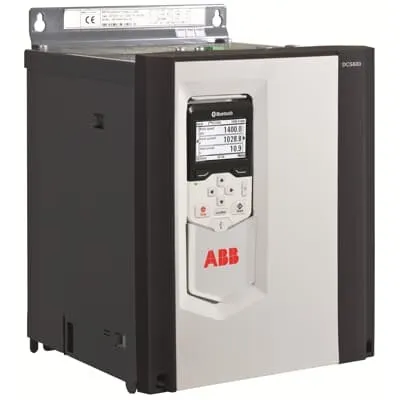

ABB 3ADT218519S0122 DC Converter Module - 525 VAC IP00
Part Number: 3ADT218519S0122
Quick Summary
The ABB 3ADT218519S0122 DC Converter Module delivers reliable power conversion for industrial drives and control panels. Engineers often struggle to fit high-current power conversion into compact panels while maintaining uptime and safety. With IP00 protection (IEC 60529), operation at 50/60 Hz, and a 16 kg compact footprint, it combines rugged reliability with easy installation. Designed for seamless integration into the ABB DCS880 ecosystem, it supports 3 analog inputs and 2 analog outputs to optimize sensing, feedback, and control workflows. Rated for 525 VAC input and 180 A current, it meets demanding machine throughput while fitting within standard dimensions of 271 mm L x 370 mm H x 270 mm W.
Product Information
Extended Description
3ADT218519S0122 ABB: DC Converter;
Type: DCS880-S01-0180-05;
2Q Converter;
Voltage: 525 VAC;
Current: 0180 A;
Weight: 16kg;
Country of Origin
Poland (PL)
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Customs Tariff Number
85044083
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
DC Converter;
Type: DCS880-S01-0180-05;
2Q Converter;
Voltage: 525 VAC;
Current: 0180 A;
Weight: 16kg;
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
16 kg
Product Net Depth / Length
271 mm
Product Net Height
370 mm
Product Net Width
270 mm
Package Level 1 Depth / Length
390 mm
Package Level 1 Height
350 mm
Package Level 1 Width
390 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP00
Operating Humidity (RHamb)
5...95%
Sound dB (A)
55 dB(A)
Frequency (f)
50 Hz | 60 Hz
Frame Size
H2
Analog Inputs
3
Analog Outputs
2
Product Name
DCS880 DC Converter Module
Feature → Business Impact → Application: 525 VAC input with 180 A current handling enables robust power delivery to high-demand drives, reducing voltage drop and improving motor performance in conveyor, extrusion, and press applications. This supports higher uptime and smoother startup sequences in automation lines, enabling reliable ABB DCS880 integration. Feature → Business Impact → Application: 3 analog inputs and 2 analog outputs provide flexible sensing and actuator interfacing, enabling precise feedback control for PID loops and process optimization in packaging and material handling. Feature → Business Impact → Application: IP00 protection offers internal mounting safety and simplified cabinet design, reducing enclosure costs and easing installation in standard control panels. Feature → Business Impact → Application: Compact H2 frame with 271 × 370 × 270 mm footprint fits tight spaces in modern automation racks, improving panel density and ease of retrofit. Feature → Business Impact → Application: 50/60 Hz compatibility across global networks minimizes engineering changes when deploying multi-site plants, supporting scalable automation. Feature → Business Impact → Application: 16 kg weight and established stock at DEAPREXPU/SGIND002EXPU streamline procurement and maintenance planning for OEMs and system integrators.
